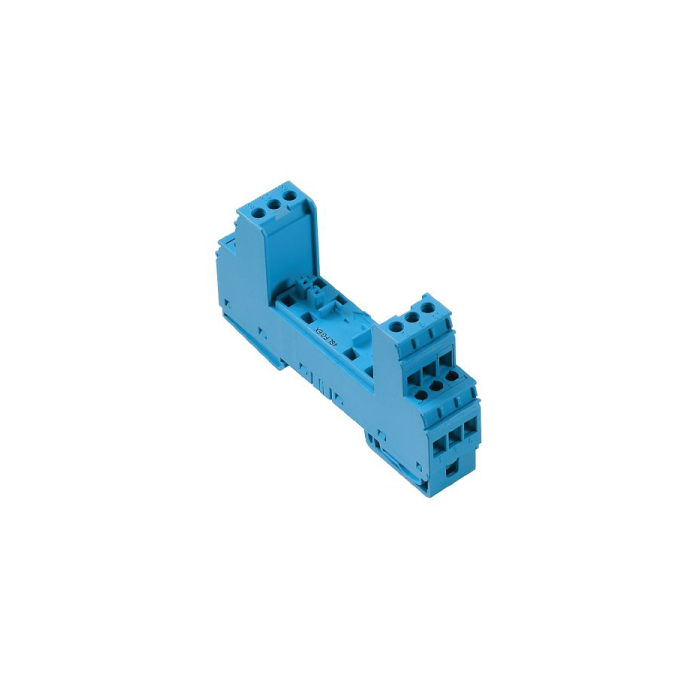

VSPC BASE 1CL PW FG EX
FG EX VSPC BASE 1CL PW:
- Basis component of the VSPC arresters that are pluggable.
- The impedance-neutral VSPC BASE has an integrated PE foot and a floating earth PE connection (FG) through an integrated sparkover gap. This allows for safe discharge of up to 20 kA (8/20 µs) and 2.5 kA (10/350 µs) to PE.
- Appropriate for unseen signal circuits.
Dimensions and weights:
- Depth: 69 mm.
- Depth (inches): 2.717 inch.
- Height: 90 mm.
- Height (inches): 3.543 inch.
- Width: 17.8 mm.
- Width (inches): 0.701 inch.
- Net weight: 75 g.
Temperatures:
- Storage temperature: -40 °C - 80 °C.
- Operating temperature: -40 °C - 70 °C.
- Humidity: 5 - 96 %.
Environmental Product Compliance:
- REACH SVHC: /.
Protection Ex – Data:
- ATEX - dust labelling: II 1 D Ex ia IIIC T135 °C …T85 °C Da.
- ATEX - gas labelling: II 1 G Ex ia IIC T4… T6 Ga.
- Certificate No. (ATEX): KEMA10ATEX0148X.
- IECEx - dust labelling: II 1 D Ex ia IIIC T135 °C …T85 °C Da.
- IECEx - gas labelling: II 1 G Ex ia IIC T4… T6 Ga.
- Internal inductance, max. LI: 0 µH.
CSA protection data:
- Gas group C: IIB.
- Gas group D: IIA.
- Gas groups A, B: IIC.
- Input current, max. II: 350 mA.
- Internal capacity, max. CI: 0 nF.
- Internal inductance, max. LI: 0 µH.
General data:
- Colour: Light Blue.
- Design: Terminal, miscellaneous.
- Optical function display: No.
- Protection degree: IP20.
- Rail: TS 35, TS 35 x 7.5.
- Segment: Measurement - Monitoring - Setting.
- UL 94 flammability rating: V-0.
- Version: Flange-mounted housing.
Insulation coordination acc. to EN 50178:
- Pollution severity: 2.
- Surge voltage category: III.
Rated data IEC / EN:
- Dielectric strength at FG against PE: ≥ 500 V.
- Leakage current at Un: 0 µA.
- Signalling contact: No.
- Standards: IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006.
- Voltage type: AC/DC.
Further details of approvals:
- GOST certificate: GOST-Zertifikat.
Connection data:
- Stripping length: 7 mm.
- Type of connection: Screw connection.
- Stripping length, rated connection: 7 mm.
- Tightening torque, min.: 0.5 Nm.
- Tightening torque, max.: 0.8 Nm.
- Clamping range, min.: 0.5 mm².
- Clamping range, max.: 4 mm².
- Wire cross-section, solid, min.: 0.5 mm².
- Wire cross-section, solid, max.: 4 mm².
- Wire connection cross section, finely stranded, max.: 2.5 mm².
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 2.5 mm².
- Connection cross-section, stranded, min.: 0.5 mm².
- Connection cross-section, stranded, max.: 2.5 mm².
- Blade size: 0.6 x 3.5 mm.
Ratings IECEx/ATEX/Cul:
- ATEX - dust labelling: II 1 D Ex ia IIIC T135 °C …T85 °C Da.
- ATEX - gas labelling: II 1 G Ex ia IIC T4… T6 Ga.
- ATEX certificate: ATEX Certificate.
- Certificate No. (ATEX): KEMA10ATEX0148X.
- IEC Ex certificate: IECEX Zertifikat.
- IECEx - dust labelling: II 1 D Ex ia IIIC T135 °C …T85 °C Da.
- IECEx - gas labelling: II 1 G Ex ia IIC T4… T6 Ga.
- cUL certificate: cUL Certificate.
