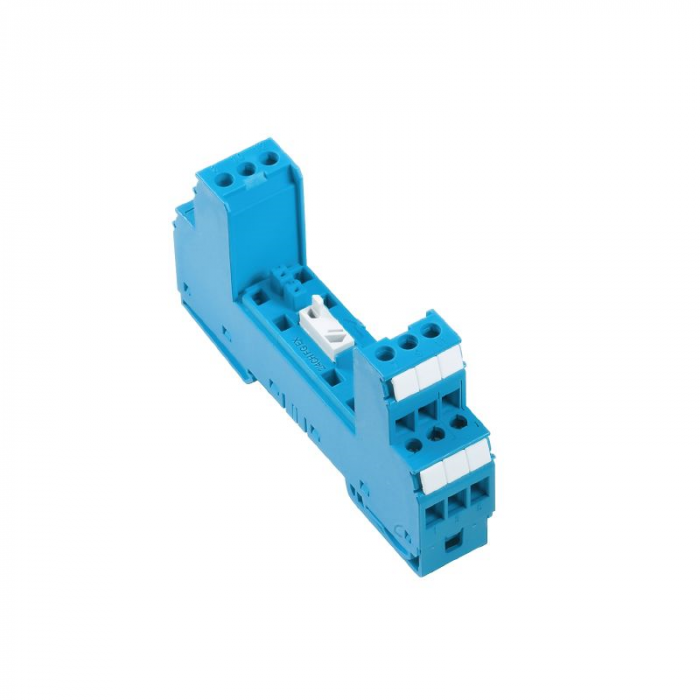

VSPC BASE 2CL FG EX
Description:
- A base component for a single floating-ground-powered paired cable.
- A connection is made between the mounting rail and the inbuilt sparkover gap upon base element installation.
- A high impedance connection is formed between the earth potential and the ground of the protective switch in the protective plug through this sparkover gap.
- Mechanical coding of the protected plug's base element based on the rated voltage and switching type.
- Suitable for ATEX applications.
- The initial insertion of a protected plug codes the base unit.
- Mechanical coding of the protected plug's base element based on the rated voltage and switching type.
- All terminals can be marked.
Specifications:
- Version: Surge protection, Flange-mounted housing.
- Depth: 69 mm.
- Height: 90 mm.
- Width: 17.8 mm.
- Storage temperature: -40 °C...80 °C.
- Operating temperature: -40 °C...70 °C.
- Humidity: 5...96 %.
- Color: Light Blue.
- Design: Terminal, miscellaneous.
- No Optical function display.
- Protection degree: IP20.
- Rail: TS 35, TS 35 x 7.5.
- Segment: Measurement - Monitoring – Setting.
- UL 94 flammability rating: V-0.
| Brand | Weidmuller |
|---|
