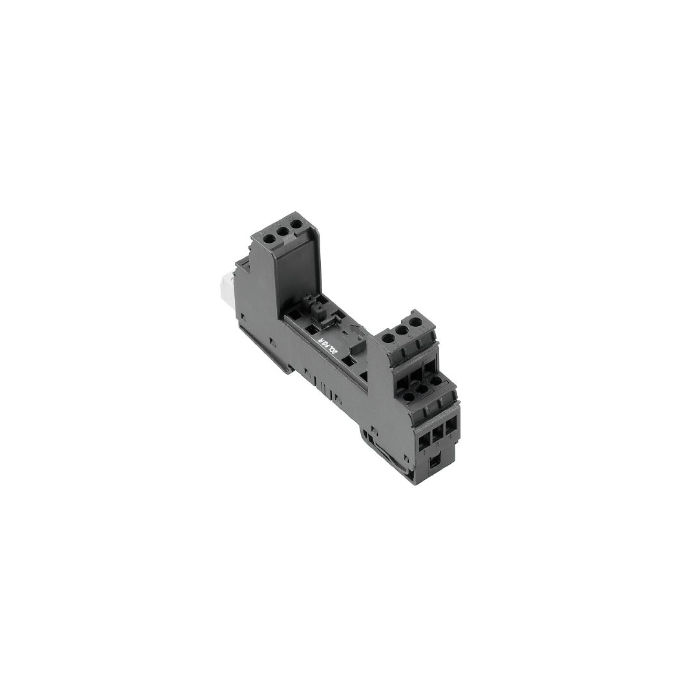

VSPC BASE 2CL FG R
Pricing available on request
VSPC BASE 2CL FG R:
- Base element for the pluggable VSPC arrester, with integrated PE foot in impedance-neutral VSPC BASE.
- Allows for safe discharge of up to 20 kA (8/20 µs) and 2.5 kA (10/350 µs) to PE.
Dimensions and weights:
- Depth: 69 mm.
- Depth (inches): 2.717 inch.
- Height: 98 mm.
- Height (inches): 3.858 inch.
- Width: 17.8 mm.
- Width (inches): 0.701 inch.
- Net weight: 65.74 g.
Temperatures:
- Storage temperature: -40 °C - 80 °C.
- Operating temperature: -40 °C - 70.
- Humidity: 5 - 96 %.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 5047b468-d57a-4a1c-8363-2ff1629067e4.
Rated data UL:
- Certificate No. (UL): E311081.
- UL certificate: UL 497b Certificate.
Connection data, remote alert:
- Connection type: Screw connection.
- Cross-section for connected wire, solid core, max.: 1.5 mm².
- Cross-section for connected wire, solid core, min.: 0.5 mm².
- Max. torque: 0.2 Nm.
- Stripping length: 6 mm.
CSA protection data:
- Gas group C: IIB.
- Gas group D: IIA.
- Gas groups A, B: IIC.
- Input current, max. II: 450 mA.
- Internal inductance, max. LI: 0 µH.
General data:
- Colour: black.
- Design: Terminal, miscellaneous.
- Optical function display: No.
- Protection degree: IP20.
- Rail: TS 35, TS 35 x 7.5.
- Segment: Measurement - Monitoring - Setting.
- UL 94 flammability rating: V-0.
- Version: Flange-mounted housing.
Insulation coordination acc. to EN 50178:
- Pollution severity: 2.
- Surge voltage category: III.
Rated data IEC / EN:
- Dielectric strength at FG against PE: ≥ 500 V.
- Leakage current at Un: 0 µA.
- Rated current IN: 450 mA.
- Signalling contact: UN 250 V AC 0.1 A 1CO at VSPC R with VSPC control unit.
- Standards:
- IEC 61643-21.
- IEC 62305.
- DIN EN 60079-0.2009.
- DIN EN 60079-11:2007.
- DIN EN 60079-26:2007.
- DIN EN 61241-11:2006.
- Voltage type: AC/DC.
Further details of approvals:
- GOST certificate: GOST-Zertifikat.
Connection data:
- Stripping length: 7 mm.
- Type of connection: Screw connection.
- Stripping length, rated connection: 7 mm.
- Tightening torque, min.: 0.5 Nm.
- Tightening torque, max.: 0.8 Nm.
- Clamping range, min.: 0.5 mm².
- Clamping range, max.: 4 mm².
- Wire cross-section, solid, min.: 0.5 mm².
- Wire cross-section, solid, max.: 4 mm².
- Wire connection cross section, finely stranded, max.: 2.5 mm².
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 2.5 mm².
- Connection cross-section, stranded, min.: 0.5 mm².
- Connection cross-section, stranded, max.: 2.5 mm².
- Blade size: 0.6 x 3.5 mm.
Ratings IECEx/ATEX/cUL:
- cUL certificate: cUL Certificate.
| SKU | 8951720000 |
|---|---|
| Brand | Weidmuller |
