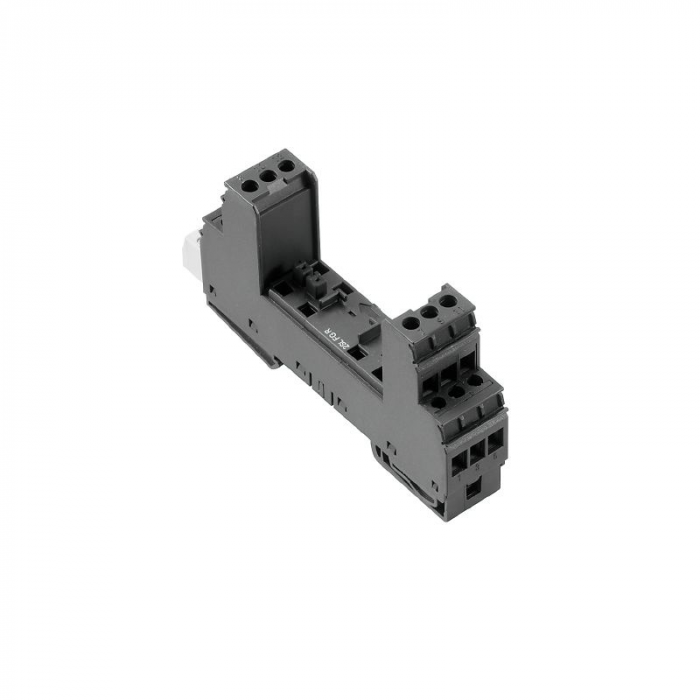

VSPC BASE 2SL FG R
Description:
- A shielded plug for up to two floating ground-powered paired wires can be inserted into the base element.
- A concurrent sparkover gap to high impedance earth is created between the mounting rail (earth) and the reference potential (ground) of the plug's protection switch upon base unit installation.
- Featuring a feature for remote monitoring.
- Mechanical coding of the protected plug's base element based on the rated voltage and switching type.
- The initial insertion of a protected plug codes the base unit.
- Two floating ground-powered paired wires with indirect earthing are provided to the base element via a shielded connector.
- With the option of remote observation.
Specifications:
- Version: Surge protection, Flange-mounted housing.
- Depth: 69 mm.
- Height: 98 mm.
- Width: 17.8 mm.
- Storage temperature: -40 °C...80 °C.
- Operating temperature: -40 °C...70.
- Humidity: 5...96 %.
- Connection type: Screw connection.
- Cross-section for connected wire, solid core, max.: 1.5 mm².
- Cross-section for connected wire, solid core, min.: 0.5 mm².
- Color: black.
- Design: Terminal miscellaneous.
- No Optical function display.
- Protection degree: IP20.
- Rail: TS 35 TS 35 x 7.5.
- Segment: Measurement - Monitoring - Setting.
- UL 94 flammability rating: V-0.
