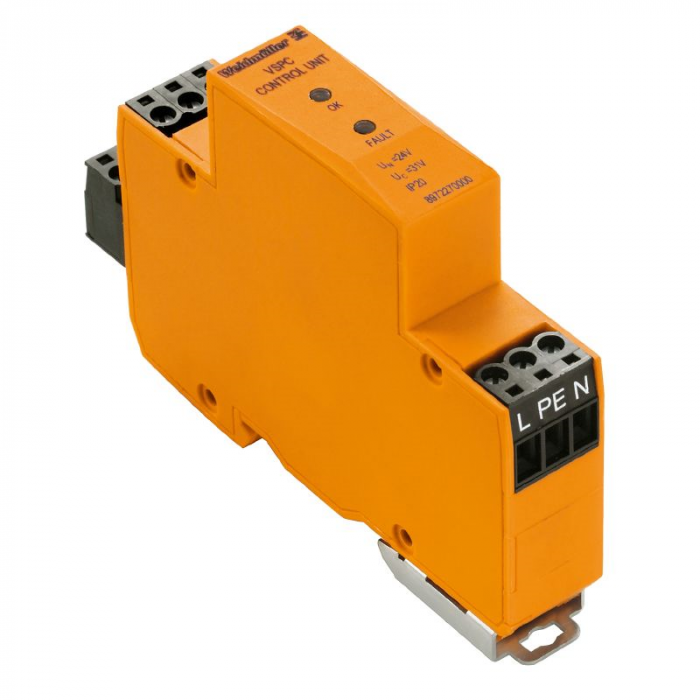

VSPC CONTROL UNIT 24VDC
Description:
- Up to ten VSPC R shielded plugs are being evaluated.
- Has a power source and a voltage-free signaling interface.
- This provides the supply power and can be coupled with up to ten base modules and optional remote monitoring.
- The voltage-free signaling contact is activated in the event of a protection module failure.
Specifications:
- Version: Surge protection for instrumentation and control, with warning function / function indicator.
- Depth: 71.5 mm.
- Height: 102 mm.
- Width: 18 mm.
- Storage temperature: -40 °C...80 °C.
- Operating temperature: -40 °C...70.
- Humidity: 5...96 %.
- Color: orange.
- Design: Installation housing.
- Protection degree: IP20.
- Rail: TS 35, TS 35 x 7.5.
- Segment: Measurement - Monitoring – Setting.
- Start-up time after fault correction: 60s.
Rated data IEC/EN:
- Max. continuous voltage, Uc (DC): 30 V.
- Number of poles: 1.
- Operating current, max: 50mA.
- Operating voltage: 24V.
- Rated current: 50 Ma.
- Rated voltage (DC): 24 V.
- No Signaling contact.
- Standards: DIN EN 50178.
Diagnosis:
- Operating status: LED green.
- Status indication: Green LED.
- Wire break detection: Red/green LED, flashing.
Alarm output:
- Switching current: 1A.
- Switching voltage: 250 V AC.
- Type: 1 CO contact.
| Brand | Weidmuller |
|---|
