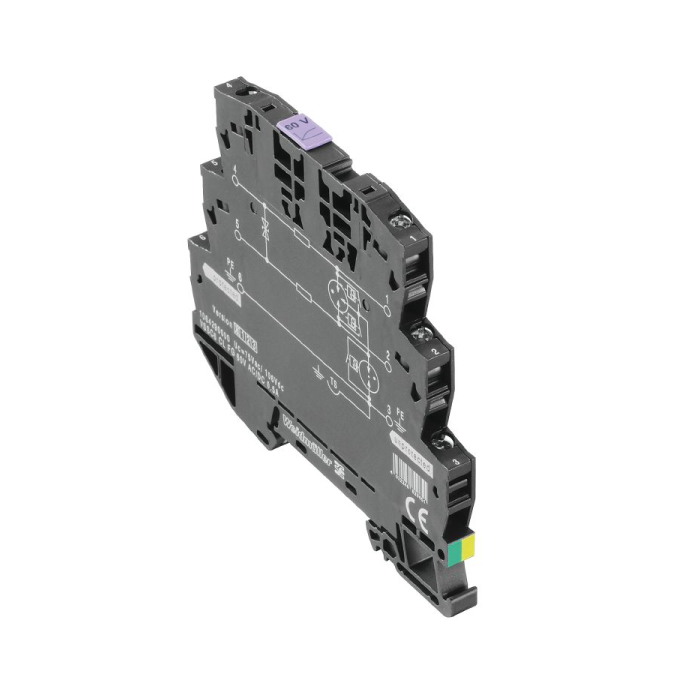

VSSC6 CL 24VAC/DC 0.5A
VSSC6 CL 24VAC/DC 0.5A:
- Overvoltage coupling along the conductor path might impair or destroy sensitive signal inputs.
- It is critical to offer security in the immediate proximity of I&C equipment.
- Weidmüller's extensive product line for the I&C industry includes 2-piece, pluggable designs as well as modular terminals for tension clamp or screw connections.
- These items are compatible with both binary and analogue signals.
- Weidmüller also provides additional designs with integrated components like gas discharge tubes and varistors.
- Variator is an abbreviation for Weidmüller's flexible and variable surge protection, which is tested in compliance with product standard IEC61643-21.
- The VARITECTOR series is suitable for applications in IEC 61643-22 / VDE 0845-3 classes C1, C2, C3, and D1.
- The VARITECTOR SPC, SSC, and MCZ OVP product families effectively integrate electrical and mechanical qualities.
- Size and ease of handling are crucial considerations.
- In industrial and process automation applications as well as building automation, this surge prevention is appropriate for cramped areas.
Dimensions and weights:
- Depth: 81 mm.
- Depth (inches): 3.189 inch.
- Height: 88.5 mm.
- Height (inches): 3.484 inch.
- Width: 6.2 mm.
- Width (inches): 0.244 inch.
- Net weight: 40.6 g.
Temperatures:
- Storage temperature: -40 °C - 80 °C.
- Operating temperature: -40 °C - 70 °C.
- Humidity: 5 - 96 %.
Probability of failure:
- SIL in compliance with IEC 61508: 2.
- MTTF: 6.008 a.
- SFF: 89.74 %.
- λges: 19.
- PFH in 1*10-9 per hour: 1.95.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 71e97bb7-979f-4330-94c0-20c629bb05e3.
Rated data UL:
- Certificate No. (UL): E311081.
- UL certificate: UL Zertifikat.
CSA protection data:
- Gas group C: IIB.
- Gas group D: IIA.
- Gas groups A, B: IIC.
- Input current, max. II: 500 A.
- Input voltage, max. Ui: 42 V.
- Internal capacity, max. CI: 1 nF.
- Internal inductance, max. LI: 0 µH.
General data:
- Colour: black.
- Design: Terminal.
- Isolating function: No.
- Optical function display: No.
- Protection degree: IP20.
- Rail: TS 35.
- Segment: Measurement - Monitoring - Setting.
- UL 94 flammability rating: V-0.
- Version: Surge protection for measurement and control.
Insulation coordination acc. to EN 50178:
- Pollution severity: 2.
- Surge voltage category: III.
Rated data IEC / EN:
- Discharge current Imax (8/20µs) wire-PE: 5 kA.
- Discharge current Imax (8/20µs) wire-wire: 5 kA.
- Discharge current In (8/20µs) wire-PE: 2.5 kA.
- Discharge current In (8/20µs) wire-wire: 2.5 kA.
- Discharge current, max. (8/20 µs): 10 kA
- Fuse: 0.5 A.
- Insertion loss: 250 MHz.
- Lightning test current Iimp (10/350 µs): 0.5 kA.
- Lightning test current, Iimp (10/350 µs) Wire-PE: 0.5 kA.
- Max. continuous voltage, Uc (AC): 30 V.
- Max. continuous voltage, Uc (DC): 42 V.
- Number of poles: 1.
- Overload - failure mode: Modus 2.
- Protection level on output side Wire-wire 1 kV/µs, typically: 70 V
- Protection level UP (typ.): 900 V.
- Protection level, UP wire - wire: 90 V
- Pulse-reset capacity: ≤ 170 ms.
- Rated current IN: 500 mA
- Rated voltage (AC): 24 V
- Rated voltage (DC): 34 V.
- Requirements category acc. to IEC 61643-21: C2, C3, D1.
- Signal transmission properties (-3 dB): 3.4 MHz.
- Standards: IEC 61643-21.
- HART-compatible.
- Surge current-carrying capacity C2: 2.5 kA.
- Surge current-carrying capacity C3: 50 A.
- Surge current-carrying capacity D1: 0,5 kA.
- Voltage type: AC/DC.
- Volume resistance: 1.8 Ω 10 %.
Further details of approvals:
- GOST certificate: GOST-Zertifikat.
Connection data:
- Stripping length: 10 mm.
- Type of connection: Screw connection.
- Tightening torque, min.: 0.5 Nm.
- Tightening torque, max.: 0.8 Nm.
- Clamping range, min.: 0.5 mm².
- Clamping range, max.: 4 mm².
- Wire cross-section, solid, min.: 0.5 mm².
- Wire cross-section, solid, max.: 6 mm².
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 4 mm².
- Connection cross-section, stranded, min.: 0.5 mm².
- Connection cross-section, stranded, max.: 4 mm².
Ratings IECEx/ATEX/cUL:
- cUL certificate: cUL Certificate.
Important note:
- Product information:
- Mode 2:.
- State where the voltage-limiting part of the SPD was disconnected..
- The voltage limiting function is no longer available, but the cable is still functional..
| Brand | Weidmuller |
|---|
