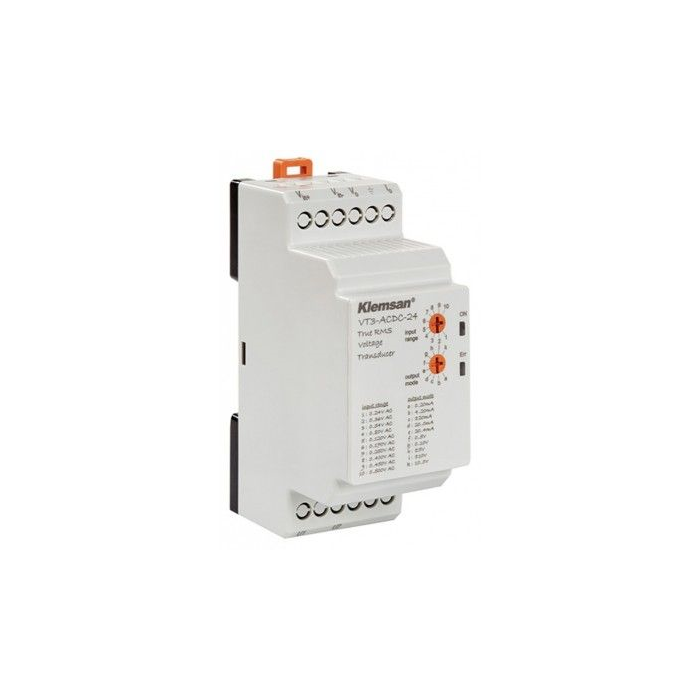

VT3-ACDC VOLT TRANSDUCER 10-36VDC
Specifications:
- VT3-ACDC-24 TRMS voltage transducer
- Casing Width (mm): 36
- Connections: Screw terminal
- Isolation: 1.5 kVrms, 3-way
- Test Voltage between Input-Output: 4 kV during 1 min.
- Linearity: < 0.2%
- Response Time: 350ms
- Ripple: < 80mV
- Accuracy: < 0.2% (full scale, 25°C)
- Temperature Coefficient: 150 ppm/°C
- Protection class: IP20
- Mounting type: Panel or rail
Technical Data:
Input Signal:
- Frequency: 40-70 Hz
- Surge Overload: < 2xU Input Max. Range (5 pulses 1sec.)
- Constant Overload: Max. 600V
- Input Impedances: 240 kΩ
Analog Output:
- Max. Current: 24 mA
- Max. Voltage: 12V
- Max. Load: 10 Ω (for voltage) / 600 Ω (for current)
Supply Voltage:
- DC: 10-36V
Power Consumption:
- DC: < 1.5W
- AC: < 4VA
Ambient Conditions:
- Operating Temperature: -20°C +60°C
- Storing Temperature: -40°C +75°C
- Relative Humidity (No Condensation): Maks. 95%
| Brand | Klemsan |
|---|
