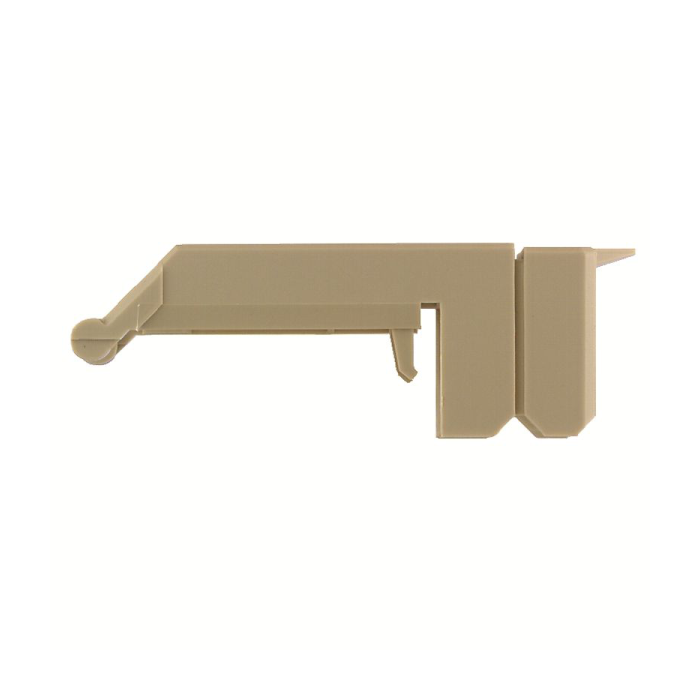

WAH 185/300 BE
WAH 185/300 BE:
- The corresponding connection area of the terminal blocks have protective covers or protective caps affixed to them.
- They offer defence against electric shock resulting from unintentional contact with live parts because of malfunctions or operation.
Dimensions and weights:
- Depth: 43.9 mm.
- Depth (inches): 1.728 inch.
- Height: 139 mm.
- Height (inches): 5.472 inch.
- Width: 54 mm
- Width (inches): 2.126 inch.
- Net weight: 25.5 g.
Temperatures:
- Storage temperature: -25 °C - 55 °C.
- Continuous operating temp., min.: -50 °C.
- Continuous operating temp., max.: 100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
Material data:
- Material: Polyamide 66.
- Colour: beige.
- UL 94 flammability rating: V-2.
Additional technical data:
- Explosion-tested version: No.
- Installation advice: Direct mounting.
- Type of fixing: Snap-on.
- Dimensions:
- Pitch in mm (P): 55 mm.
General:
- Installation advice: Direct mounting.
| Brand | Weidmuller |
|---|
