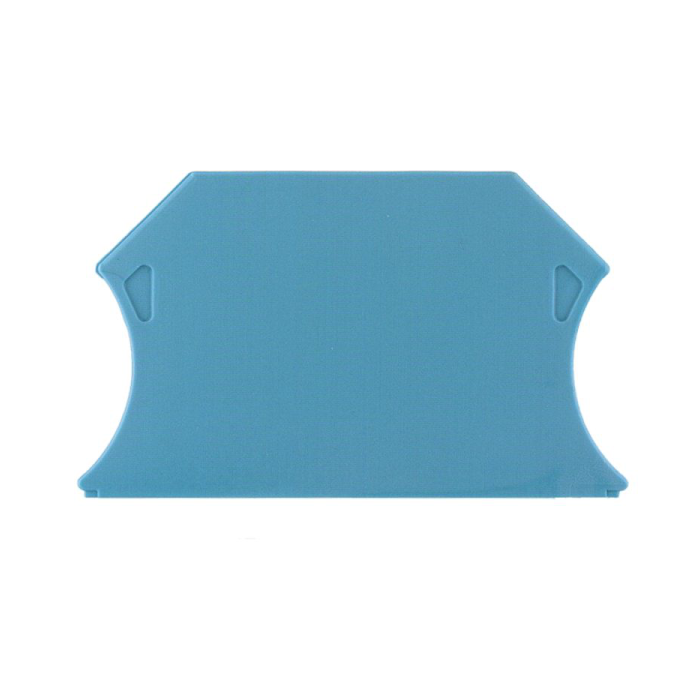

WAP 2.5-10 BL
WAP 2.5-10 BL:
- End plates are installed on the open side of the last modular terminal before the end bracket.
- Using an end plate ensures the modular terminal functions properly and meets the stated rated voltage.
- It protects against contact with live parts and ensures the end terminal is finger-proof.
Dimensions and weights:
- Depth: 33.5 mm.
- Depth (inches): 1.319 inch.
- Height: 56 mm.
- Height (inches): 2.205 inch.
- Width: 1.5 mm.
- Width (inches): 0.059 inch.
- Net weight: 2.56 g.
Temperatures:
- Storage temperature: -25 °C - 55 °C.
- Continuous operating temp., min.: -60°C.
- Continuous operating temp., max.: 130°C.
Environmental Product Compliance:
- REACH SVHC: /.
Material data:
- Material: Wemid.
- Colour: Blue.
- UL 94 flammability rating: V-0.
System specifications:
- Version: End plate.
Additional technical data:
- Installation advice: Direct mounting.
- Snap-on: No.
General:
- Installation advice: Direct mounting.
| SKU | 1050080000 |
|---|---|
| Brand | Weidmuller |
