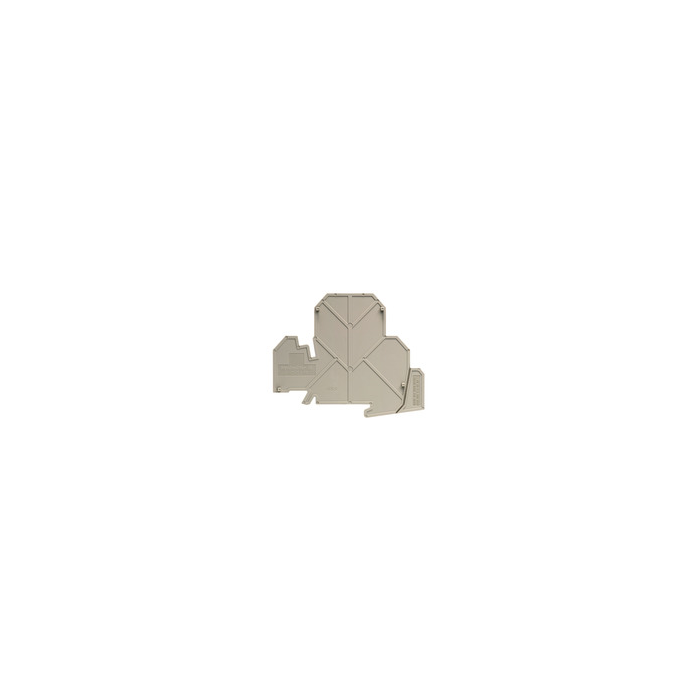

WAP WDK 2.5N/TR-DU
Description:
- The final modular terminal before the end bracket has end plates installed on its open side.
- The modular terminal's operation and the designated rated voltage are guaranteed by the installation of an end plate.
- It ensures that no live parts will come into contact with the terminal and renders the terminal finger-proof.
Specifications:
- Version: End plate (terminals).
- Quantity: 50.
- Depth: 58.84 mm.
- Height: 80.35 mm.
- Width: 1.5 mm.
- Storage temperature: -25 °C...55 °C.
- Continuous operating temp., min: -50 °C.
- Continuous operating temp., max: 120 °C.
- Material: Wemid.
- Color: dark beige.
- UL 94 flammability rating: V-0.
- Installation advice: Direct mounting.
- Non-snap-on.
| SKU | 1839850000 |
|---|---|
| Brand | Weidmuller |
