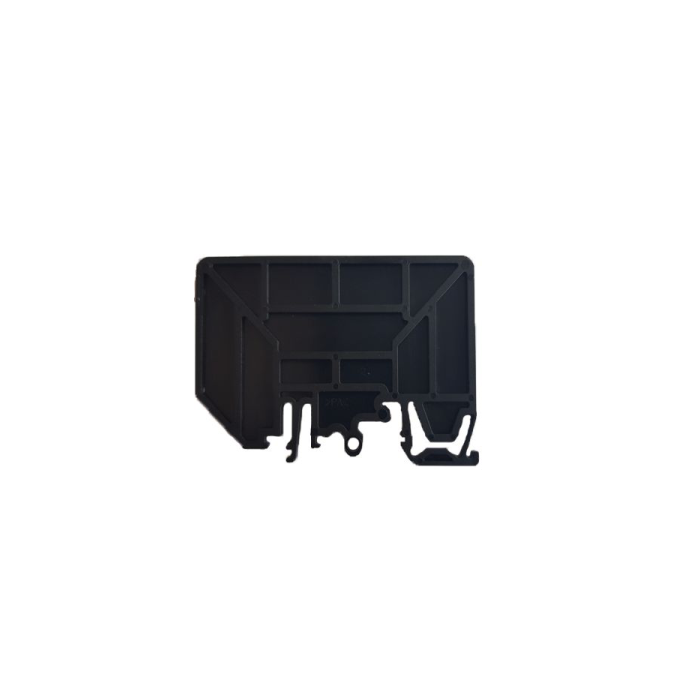

WAP WSI4/2
Description:
- The final modular terminal before the end bracket has end plates installed on its open side.
- The modular terminal's operation and the designated rated voltage are guaranteed by the installation of an end plate.
- It ensures that no live parts will come into contact with the terminal and renders the terminal finger-proof.
Specifications:
- Version: End plate (terminals).
- Quantity: 50.
- Depth: 49.49 mm.
- Height: 71.12 mm.
- Width: 2.5 mm.
- Storage temperature: -25 °C...55 °C.
- Continuous operating temp., min: -50 °C.
- Continuous operating temp., max: 120 °C.
- Material: Wemid.
- Color: black.
- UL 94 flammability rating: V-0.
- Installation advice: Feed-through (bushing).
- Non-Snap-On.
- TS 32 offset: 36 mm.
- TS 35 offset: 36 mm.
| SKU | 1880450000 |
|---|---|
| Brand | Weidmuller |
