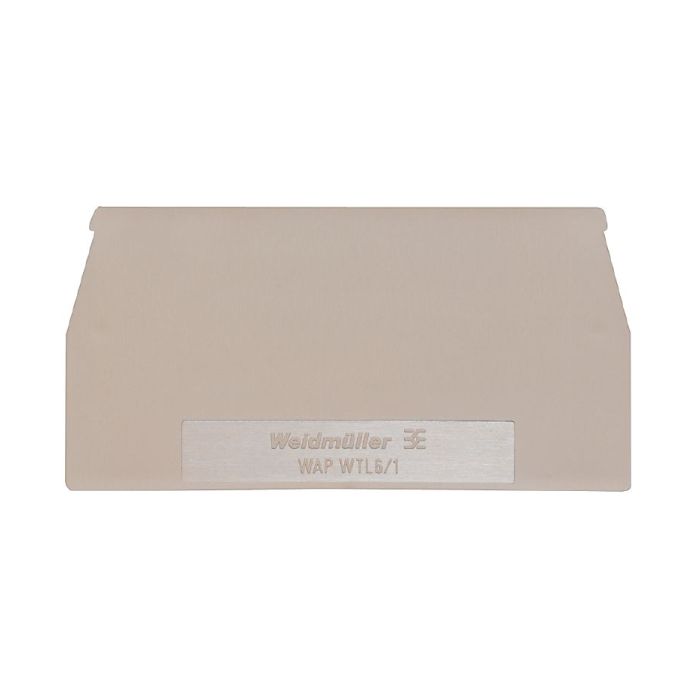

WAP WTL6/1
WAP WTL6/1:
- Wiring for current and voltage transformers.
- Our test disconnects terminal blocks with spring and screw connection technology enable you to build all the necessary converter circuits for measuring current, voltage, and power in a safe and sophisticated manner.
Dimensions and weights:
- Depth: 34.5 mm.
- Depth (inches): 1.358 inch.
- Height: 65 mm.
- Height (inches): 2.559 inch.
- Width: 1.5 mm.
- Width (inches): 0.059 inch.
- Net weight: 3.785 g.
Temperatures:
- Storage temperature: -25 °C - 55 °C.
- Continuous operating temp., min.: -50 °C.
- Continuous operating temp., max.: 120 °C.
Environmental Product Compliance:
- REACH SVHC: /.
Material data:
- Material: Wemid.
- Colour: Dark beige.
- UL 94 flammability rating: V-0.
System specifications:
- Version: End plate.
Additional technical data:
- Installation advice: Feed-through (bushing), Direct mounting.
- Snap-on: No.
General:
- Installation advice: Feed-through (bushing), Direct mounting.
| SKU | 1068300000 |
|---|---|
| Brand | Weidmuller |
