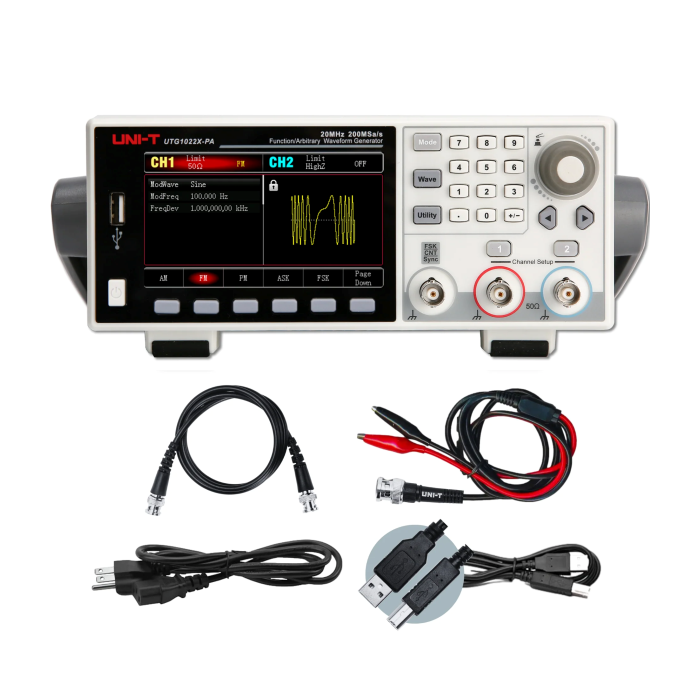

Waveform and Function Generators, UTG1022X-PA 20MHz 2Ch
UTG1000X Series, Waveform and Function Generators:
- Dual-channel comparable performance Maximum output frequency: 40 MHz; maximum output amplitude: 20 Vpp.
- 200 MSa/s sampling rate, 16-bit vertical resolution.
- The maximum frequency of a square wave is 10 MHz, with low jitter.
- AM, FM, PM, FSK, ASK, PSK, and PWM are among the many analog and digital modulation options.
- Standard USB host/device interface.
- Support the sweep frequency and pulse train output.
- The built-in power amplifier module has a maximum output power of 4W (-PA only).
- PC software may generate arbitrary waveforms.
- The 7-bit hardware frequency counter function produces lower output noise and has a greater signal-to-noise ratio.
- Includes 200 arbitrary waveforms.
- 4.3-inch TFT LCD display.
Specifications:
- UTG1000X Series, Waveform and Function Generators.
- Channels 2Ch.
- Memory Depth 4kpts.
- Frequency 20MHz
- Square/Pulse (Hz) 10MHz
- Vertical Resolution 16 Bits.
- Waveforms Sine Square Ramp Pulse Noise DC Arbitrary.
- Built-in Arbs 200.
- Modulation Types AM FM FSK PM ASK PSK PWM.
- Sweep Modes Linear Logarithmic.
- Frequency Counter 100mHz - 200MHz
- Display Size (in) 4.3in.
- Touchscreen No.
- Warranty 3 years.
- Product Dimensions (L x W x H) 9 in x 12 in x 4 in.
- Product Weight 5 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTG1022X-PA |
|---|---|
| Brand | UNI-T |
