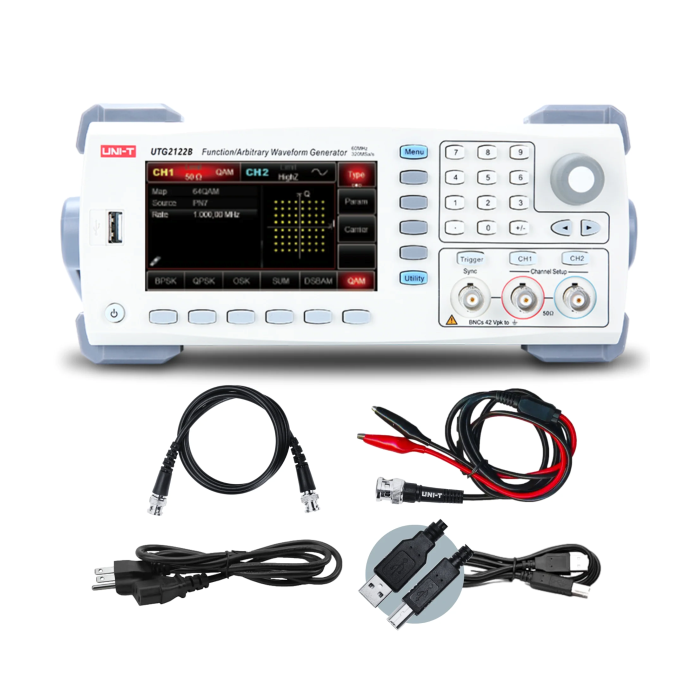

Waveform and Function Generators, UTG2122B 120MHz 2Ch
UTG2000A/B Series, Waveform and Function Generators:
- 60 MHz/80 MHz/120 MHz sine waveform output with 1 μHz full-band resolution.
- 1.28 GSa/s sampling rate, 16 bits vertical resolution.
- Function for outputting expressions that are unique.
- Standard two channels with standalone and channel-coupling output modes.
- Arbitrary waveform depth of 16 Mpts.
- Variable modulation possibilities include AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM.
- 4.3-inch TFT LCD with WVGA resolution (800×480).
- Standard ports include USB Host, USB Device, and LAN.
Specifications:
- UTG2000A/B Series, Waveform and Function Generators.
- Channels 2Ch.
- Memory Depth 16Mpts.
- Frequency 120MHz
- Square/Pulse (Hz) 30MHz
- Vertical Resolution 16 Bits.
- Waveforms Sine Square Ramp Pulse Harmonic Noise DC Arbitrary Expression.
- Built-in Arbs 160.
- Modulation Types AM FM FSK PM QAM ASK PSK BPSK QPSK OSK PWM SUM DSB-AM.
- Sweep Modes Linear Logarithmic.
- Frequency Counter 100mHz - 200MHz
- Display Size (in) 4.3in.
- Touchscreen No.
- Warranty 3 years.
- Product Dimensions (L x W x H) 12 in x 4 in x 9 in.
- Product Weight 7 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTG2122B |
|---|---|
| Brand | UNI-T |
