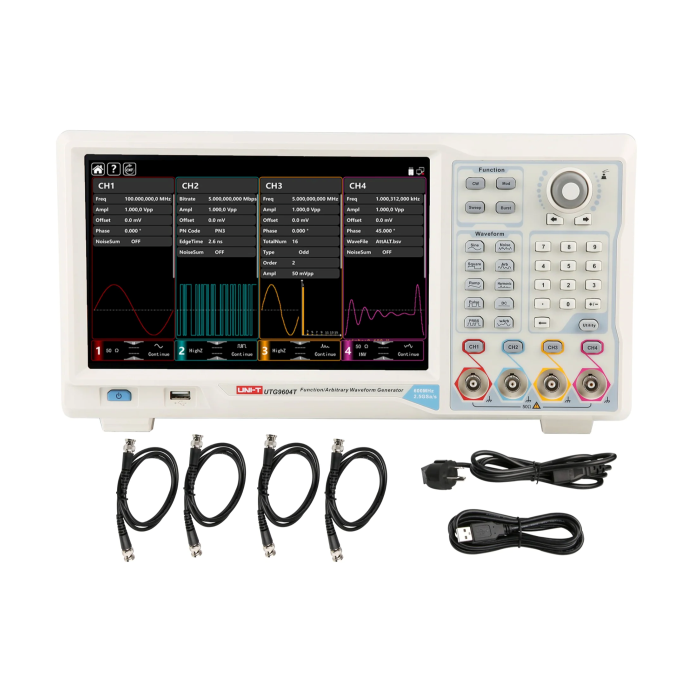

Waveform and Function Generators, UTG9604T
UTG9000T Series, Waveform and Function Generators:
- 4 channels of output.
- Output: 600 MHz sine wave with full-band resolution of 1 μHz.
- 200 MHz pulse waveform with variable peak and fall times.
- Sample rate: 2.5 GSa/s, vertical resolution: 16 bits.
- Point-to-point output is supported with an arbitrary wave memory depth of 64 Mpts.
- Supports one-click SNR output.
- Frequency sweep modes include linear, logarithmic, list, and stepping.
- Modulation types include AM, PM, FM, DSBAM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, and SUM.
- 10.1-inch capacitive touchscreen with 1280*800 resolution.
- Digital protocol outputs include SPI, I2C, and UART.
- Standard interfaces include USB Host, USB Device, and LAN.
Specifications:
- UTG9000T Series, Waveform and Function Generators.
- Channels 4Ch.
- Memory Depth 64Mpts.
- Frequency 600MHz
- Square/Pulse (Hz) 200MHz
- Vertical Resolution 16 Bits.
- Waveforms Sine Square Ramp Pulse Harmonic Noise DC Arbitrary PRBS.
- Built-in Arbs 200.
- Modulation Types AM FM FSK PM QAM ASK PSK BPSK QPSK OSK PWM SUM DSB-AM 3FSK 4FSK.
- Sweep Modes Linear Logarithmic List Frequency Stepping.
- Frequency Counter 100mHz - 800MHz
- Display Size (in) 10.1in.
- Touchscreen Yes.
- Warranty 3 years.
- Product Dimensions (L x W x H) 13 in x 4 in x 6 in.
- Product Weight 8 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTG9604T |
|---|---|
| Brand | UNI-T |
