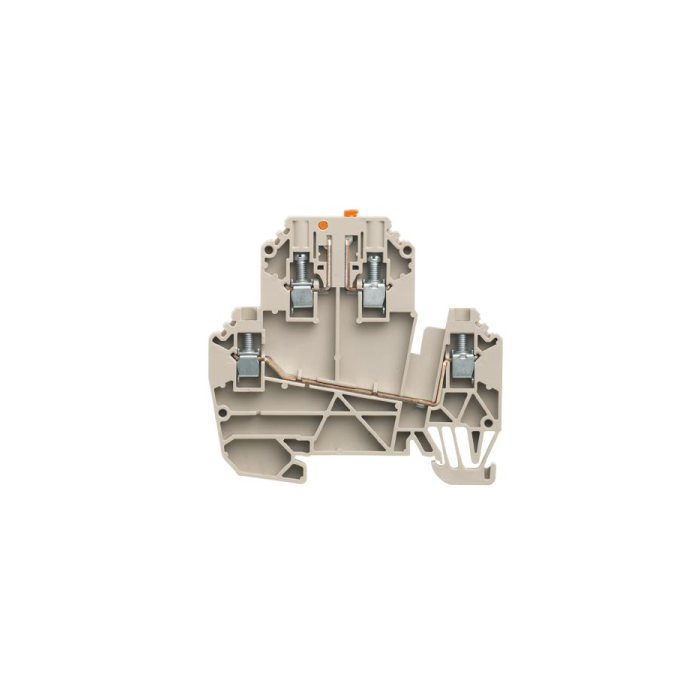

WDK 2.5/TR-DU
Pricing available on request
WDK 2.5/TR-DU:
- For testing and safety reasons, it makes sense to add a test point or a disconnect element to the feed through terminal in particular applications.
- In the absence of voltage, electric circuits can be measured using test disconnect transformers.
- Although the creepage distance and clearing between disconnecting sites are not measured in terms of dimensions.
- The rated impulse voltage strength needs to be verified.
Material data:
- Material: Wemid
- Colour: dark beige
- UL 94 flammability rating: V-0
Dimensions and weights:
- Depth: 67.5 mm
- Depth including DIN rail: 67 mm
- Height: 72.5 mm
- Width: 5.1 mm
- Net weight: 14.86 g
Temperatures:
- Storage temperature: -25 °C...55 °C
- Continuous operating temp., min.: -50 °C
- Continuous operating temp., max.: 120 °C
Rating data:
- Rated cross-section: 2.5 mm²
- Rated voltage: 500 V
- Rated DC voltage: 500 V
- Rated current: 24 A
- Current at maximum wires: 24 A
- Volume resistance according to IEC 60947-7-x: 1.33 mΩ
- Rated impulse withstand voltage: 8 kV
- Power loss in accordance with IEC 60947-7-x: 0.77 W
- Pollution severity: 3
| SKU | 1247290000 |
|---|---|
| Brand | Weidmuller |
