Varied product assortment with wide clamping range:

• Our terminal blocks with clamping yoke technology are available in both standard and compact designs.
• The compact design covers wire cross-sections from 0.05 mm2 to 150 mm2 and helps save space in the panel.
• The standard version covers conductor cross sections of up to 240 mm2.
• The identical contours of the terminal blocks make configuration easier and reduces the quantity of accessories required.

Specifications:

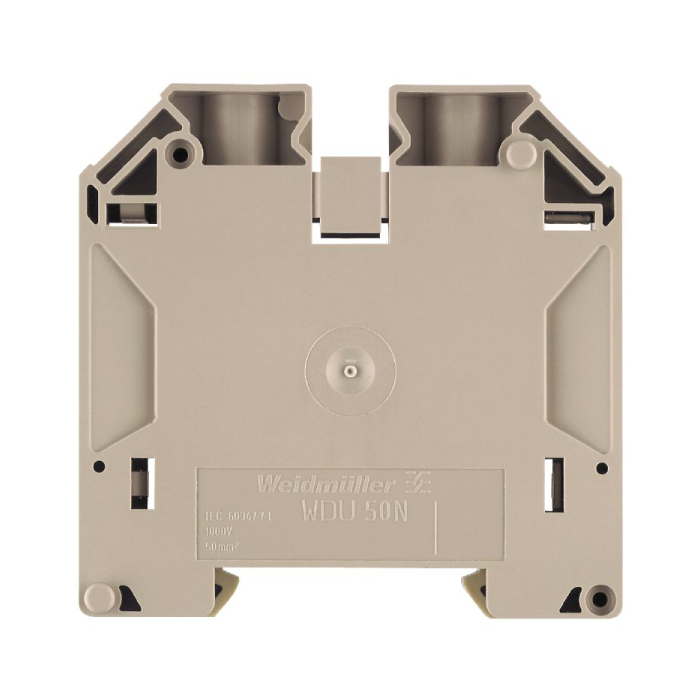

• Version: Feed-through terminal block, Screw connection.
• Quantity: 10.
• Depth: 69.6 mm.
• Depth including DIN rail: 70.6 mm.
• Height: 70 mm.
• Width: 18.5 mm.
• Storage temperature: -25 °C...55 °C.
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C.
• Material: Wemid.
• Color: dark beige.
• UL 94 flammability rating: V-0.
• Installation advice: Direct mounting.
• Number of similar terminals: 1.
• Open sides: closed.
• Type of mounting: Snap-on.
• Standards: IEC 60947-7-1.

System specifications:

• No End cover plate required.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Number of potentials per tier: 1.
• No Levels cross-connected internally.
• No PE connection.
• Rail: TS 35.
• No N-function.
• No PE function.
• PEN function.

Rating data:

• Rated cross-section: 120 mm².
• Rated voltage: 1,000 V.
• Rated DC voltage: 1,000 V.
• Rated current: 269 A.
• Current at maximum wires: 290 A.
• Volume resistance according to IEC 60947-7-x: 0.12 mΩ.
• Rated impulse withstand voltage: 8 kV.
• Power loss in accordance with IEC 60947-7-x: 8.61 W.
• Pollution severity: 3.
