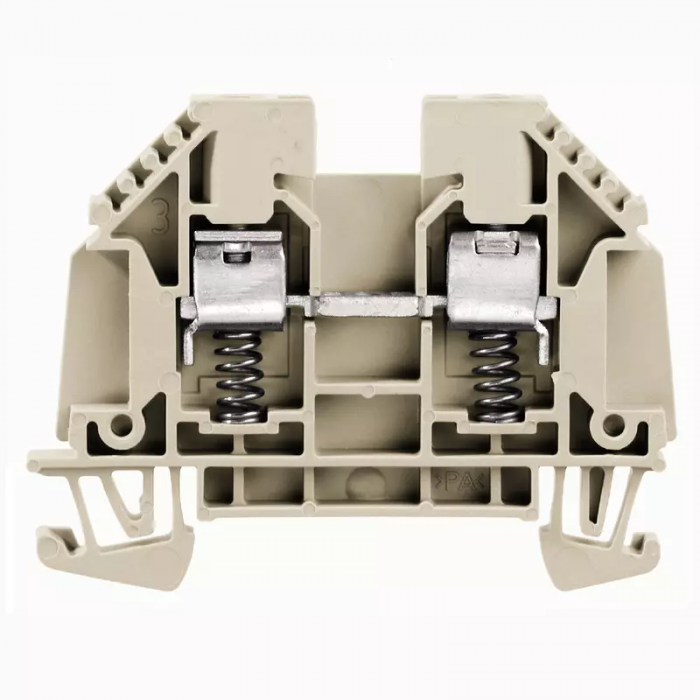

Specifications weights and dimensions:

• Depth: 46.5 mm.
• Depth (with DIN rail included): 47 mm.
• Height: 60 mm.
• Width: 7.9 mm.
• Net weight: 16.226 g.

Temperatures:

• Storage temperature range: -25°C - 55°C.
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Continuous operating temperature, minimum: -60°C.
• Continuous operating temperature, maximum: 130 °C.

Material data:

• Material: Wemide.
• Colour: Dark beige.
• UL 94 flammability rating: V-0.

Rating data IECEx/ATEX:

• Certificate No. (ATEX): DEMKO14ATEX1338U.
• Certificate No. (IECEX): IECEXULD14.0005U.
• Max. voltage (ATEX): 275 V.
• Current (ATEX): 40 A.
• Wire cross section max. (ATEX): 6 mm².
• Max. voltage (IECEX): 275 V.
• Current (IECEX): 40 A.
• Wire cross section max. (IECEX): 6 mm².
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Marking EN 60079-7: Ex eb II C Gb.
• Ex 2014/34/EU label: II 2 G D.

System requirements:

• Version: Screw connection with spring-loaded cable clamp for screwable cross-connection for plug-in cross-connector One end without connector.
• End cover plate required: Yes.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level 2.
• Number of potentials per Tier: 1.
• Cross-connected levels internally: No.
• PE connection: No.
• Rail: TS 35.
• N-function: No.
• PE function: No.
• PEN function: No.

Additional technical details:

• Version that has been tested for explosions: No.
• Number of comparable terminals: 1.
• Open sides: right.
• Mounting type: snap-on.

Conductors for clamping (extra connection):

• Type of connection, additional connection: Screw connections.

Conductors for clamping (rated connection):

• Size of blade: 0.8 x 4.0 mm.
• Maximum clamping range: 6 mm².
• Minimum clamping range: 0.5 mm².
• Clamping screw: M 3.5.
• Maximum cross-sectional area, stranded connection: 6 mm².
• Connection direction: on side.
• Gauge to IEC 60947-1: A5.
• Number of connections: 2.
• Length of strip: 16 mm.
• Tightening torque, maximum: 1.6 Nm.
• Tightening torque, minimum: 0.8 Nm.
• Connection type: Screw connection.
• Cross section of wire connection, neatly stranded, maximum: 6 mm².
• cross-section of wire connection, finely stranded, minimum: 0.5 mm².
• Wire connection cross-section, solid core, maximum: 6 mm².
• Wire connection cross-section, solid core, minimum: 0.5 mm².

CSA Rating Data:

• Certificate number (CSA): 200039-1057876.
• Current size C (CSA): 45 A.
• Current size D (CSA): 5 A.
• Voltage size C (CSA): 300 V.
• Voltage size D (CSA): 600 V.
• Wire cross section maximum (CSA): 8 AWG.
• Wire cross section minimum (CSA): 20 AWG.

General:

• Rail: TS 35.
• Standard: IEC 60947-7-1.

Ratings data:

• Cross-section rating: 6 mm².
• Voltage rating: 630 V.
• DC voltage rating: 630 V.
• Current rating: 41 A.
• Current at maximum wires: 57 amps.
• Standard: IEC 60947-7-1.
• According to IEC 60947-7-x, volume resistance is 0.78 mΩ.
• Rated impulse withstand voltage: 6 kV.
• Power loss in accordance with IEC 60947-7-x is 1.31 W.
• Severity of pollution: 2.
• Surge voltage category: III.

UL rating data:

• Certificate No. (UR): E60693.
• Factory wiring maximum conductor size (UR): 8 AWG.
• Size of conductor Factory wiring minimum (UR): 20 AWG.
• Conductor size Field wiring maximum (UR): 8 AWG.
• Conductor size Field wiring minimum (UR): 20 AWG.
• Current C (UR) size: 50 A.
• Current D (UR) size: 10 A.
• Voltage size C (UR): 150 V.
• Voltage size D (UR): 300 V.
