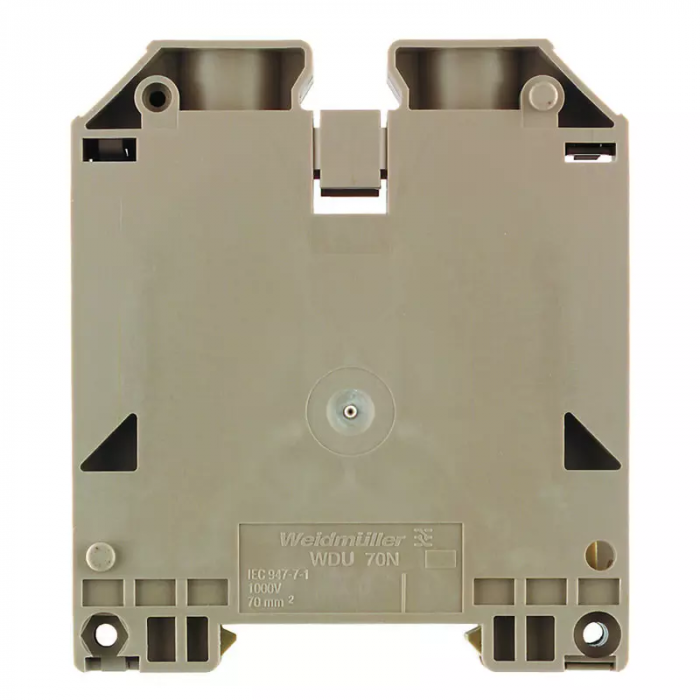

Specifications weights and dimensions:

• Depth: 85 mm.
• Depth (with DIN rail included): 86 mm.
• Height: 75 mm.
• Width: 20.5 mm.
• Net weight: 118.93 g.

Temperatures:

• Storage temperature range: -25°C to 55°C.
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Continuous operating temperature, minimum: -60°C.
• Continuous operating temperature, maximum: 130 °C.

Material data:

• Material: Wemide.
• Colour: Dark beige.
• UL 94 flammability rating: V-0.

Rating data IECEx/ATEX:

• Certificate No. (ATEX): DEMKO14ATEX1338U.
• Certificate No. (IECEX): IECEXULD14.0005U.
• Maximum voltage (ATEX): 690 V.
• Current (ATEX): 184 A.
• Wire cross section max. (ATEX): 70 mm².
• Maximum voltage (IECEX): 690 V.
• Current (IECEX): 184 A.
• Wire cross section max. (IECEX): 70 mm².
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Marking EN 60079-7: Ex eb II C Gb.
• Ex 2014/34/EU label: II 2 G D.

system requirements:

• Version: Screw connection for screwable cross-connection in closed state.
• End cover plate required: No.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level 2.
• Number of potentials per Tier: 1.
• Cross-connected levels internally: No.
• PE connection: No.
• Rail: TS 35.
• N-function: No.
• PE function: No.
• PEN function: Yes.

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection):

• Cross-section for connected wire, stranded, two clampable wires, maximum: 25 mm².
• Cross-section for connected wire, stranded, two clampable wires, minimum: 10 mm².
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, maximum: 25 mm².
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, minimum: 6 mm².
• Wire connection cross section, finely stranded, two clampable wires, minimum: 10 mm².
• Wire cross-section, finely stranded, two clampable wires, maximum: 25 mm².

Additional technical details:

• Version that has been tested for explosions: Yes.
• Installation advice: Mount directly.
• Number of comparable terminals: 1.
• Open sides: Closed.
• Mounting type: snap-on.

CSA Rating Data:

• Certificate number (CSA): 200039-1581431.
• Current size C (CSA): 150 A.
• Voltage size C (CSA): 600 V.
• Wire cross section maximum (CSA): 0 AWG.
• Wire cross section minimum (CSA): 6 AWG.

Conductors for clamping (extra connection):

• Connection type, additional connection: Screw connection.

Conductors for clamping (rated connection):

• Size of blade: S6 (DIN 6911).
• Maximum clamping range: 95 mm².
• Minimum clamping range: 16 mm².
• Clamping screw: M 8.
• Maximum cross-sectional area, stranded connection: 95 mm².
• Minimum cross-sectional area, stranded: 16 mm².
• Connection direction: on side.
• Gauge to IEC 60947-1: B11.
• Number of connections: 2.
• Length of strip: 22 mm.
• Tightening torque, maximum: 12  Nm.
• Tightening torque, minimum: 8  Nm.
• Connection type: Screw connection.
• Wire connection cross section AWG, maximum: AWG 0.
• Wire connection cross section AWG, minimum: AWG 6.
• Cross section of wire connection, neatly stranded, maximum: 70 mm².
• cross-section of wire connection, finely stranded, minimum: 16 mm².
• Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, maximum: 70 mm².
• Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, minimum: 16 mm².
• Wire connection cross-section, carefully stranded with wire-end ferrules DIN 46228/4, maximum: 50 mm².
• Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/4, minimum: 16 mm².
• Wire connection cross-section, solid core, maximum: 16 mm².
• Wire connection cross-section, solid core, minimum: 16 mm².

General:

• Installation advice: Mount directly.
• Rail: TS 35.
• Standard: IEC 60947-7-1.
• Wire connection cross section AWG; maximum: AWG 0.
• Wire connection cross section AWG, minimum: AWG 6.

Ratings data:

• Cross-section rating: 70 mm².
• Voltage rating: 1000 V.
• DC voltage rating: 1000 V.
• Current rating: 192 A.
• Current at maximum wires: 232 amps.
• Standard: IEC 60947-7-1.
• According to IEC 60947-7-x, volume resistance is 0.17 mΩ.
• Rated impulse withstand voltage: 8 kV.
• Power loss in accordance with IEC 60947-7-x is 6.14 W.
• Severity of pollution: 3.

UL rating data:

• Certificate No. (cURus): E60693.
• Factory wiring maximum conductor size (cURus): 0 AWG.
• Size of conductor Factory wiring minimum (cURus): 6 AWG.
• Conductor size Field wiring maximum (cURus): 0 AWG.
• Conductor size Field wiring minimum (cURus): 6 AWG.
• Current C (cURus) size: 150 A.
• Voltage size C (cURus): 600 V.
