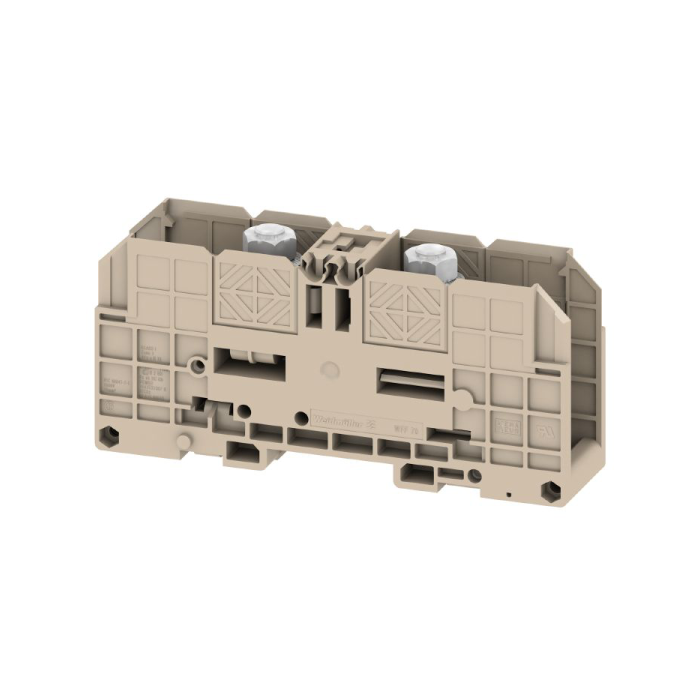

Specifications dimensions and weights:

• Depth: 61 mm.
• Depth (inches): 2.402 inch.
• Depth including DIN rail: 69.5 mm.
• Height: 132 mm.
• Height (inches): 5.197 inch.
• Width: 31.8 mm.
• Width (inches): 1.252 inch.
• Net weight: 157.464 g.

Temperatures:

• Storage temperature: -25 °C - 55 °C.
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Continuous operating temp., min.: -50 °C.
• Continuous operating temp., max.: 120 °C.

Environmental Product Compliance:

• REACH SVHC: /.

Material data:

• Material: Wemid.
• Colour: dark beige.
• UL 94 flammability rating: V-0.

Rating data IECEx/ATEX:

• Certificate No. (IECEX): IECEXULD15.0004U.
• Max. voltage (IECEX): 1100 V.
• Current (IECEX): 192 A.
• Wire cross section max. (IECEX): 7 mm².
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Marking EN 60079-7: Ex eb II C Gb.
• Ex 2014/34/EU label: II 2 G D.

System specifications:

• End cover plate required: No.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Levels cross-connected internally: No.
• PE connection: No.
• Rail: TS 35.

Additional technical data:

• Explosion-tested version: Yes.
• Number of similar terminals: 1.
• Open sides: closed.
• Type of mounting: Snap-on.

Conductors for clamping (rated connection):

• 2 x cable lugs DIN 46 234: 2.5 to 70 mm².
• 2 x cable lugs DIN 46 235: 16 - 70 mm².
• Cable lug to DIN 46234: 2.5 - 95 mm².
• Cable lug to DIN 46235: 16 - 70 mm².
• Clamping range, max.: 95 mm².
• Clamping range, min.: 2.5 mm².
• Number of connections: 2.
• Stud size for spade connection: M 8.
• Tightening torque, max.: 12 Nm.
• Tightening torque, min.: 6 Nm.
• Type of connection: Threaded stud connection.

CSA rating data:

• Certificate No. (CSA): 200039-1244019.
• Current size C (CSA): 170 A.
• Voltage size C (CSA): 600 V.
• Wire cross section max. (CSA): 00 AWG.
• Wire cross section min. (CSA): 14 AWG.

General:

• Rail: TS 35.

Rating data:

• Rated cross-section: 70 mm².
• Rated voltage: 1,000 V.
• Rated DC voltage: 1,500 V.
• Rated current: 192 A.
• Current at maximum wires: 232 A.
• Volume resistance according to IEC 60947-7-x: 0.17 mΩ.
• Rated impulse withstand voltage: 8 kV.
• Power loss in accordance with IEC 60947-7-x: 6.14 W.
• Pollution severity: 3.

UL rating data:

• Certificate No. (UR): E60693.
• Conductor size Factory wiring max. (UR): 00 AWG.
• Conductor size Factory wiring min. (UR): 14 AWG.
• Conductor size Field wiring max. (UR): 00 AWG.
• Conductor size Field wiring min. (UR): 14 AWG.
• Current size C (UR): 175 A.
• Voltage size C (UR): 1000 V.
