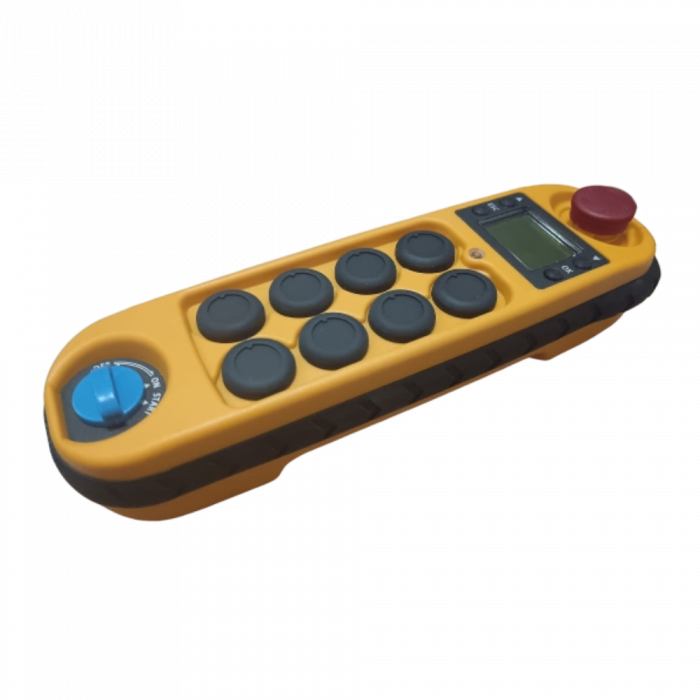

WIFI Transmitter ( 9 Buttons)
WIFI two-way Remote controls:
- Fit for the WiFi Controller of the A-52 Series.
- Simply plug in and start playing.
- Menu with multiple languages displayed.
- Capable of changing a parameter while the controller is in use.
- Display text: bar charts, indicators, scrolling text, variety patterns, etc.
- Dual display and function key integrated in.
- Real-time monitoring and digital oscilloscope functionality
- Encouragement display upon startup, IP66 Protection Standard IEEE 802.11 b/g at 2.4GHz (WIFI)
- Resolution of Display: 96 x 64 Pixels.
- Dual Watchdog Timer Transmitter with PC Not Needed to Edit PLC Program or Parameter Directly Software Assistance WPA2-PSK (AES)
- Able to execute individual operations for each transmitter while utilizing seven transmitters to communicate with a single WiFi controller.
- System with two-way communication; monitors via display.
- Both multi-channel and multi-clustering can be employed concurrently; there is no limit on ID groups.
- Modifiable transmission power.
Specifications:
- Operation Voltage: AA Battery *4/ RCR-V3
- Display: 1.8” STN
- Contrast: Adjustable directly
- Resolution: 96*64 Pixels
- STN Display Life: More than 50000 hours.
- Brightness: 60cd/m2
- Display Colour: Monochrome
- Function Keys: 9, Definable
- Display Dimension: 38*28mm.
- Operation temperature: -20 to +75°C
- Degree of protection: IP66
- Communication: Standard 2.4GHz IEEE 802.11 b/g (WIFI)
- Dimension (W x H x D): 222.1mm x 65.6mm x 45mm
Brand | Yottacontrol |
---|
