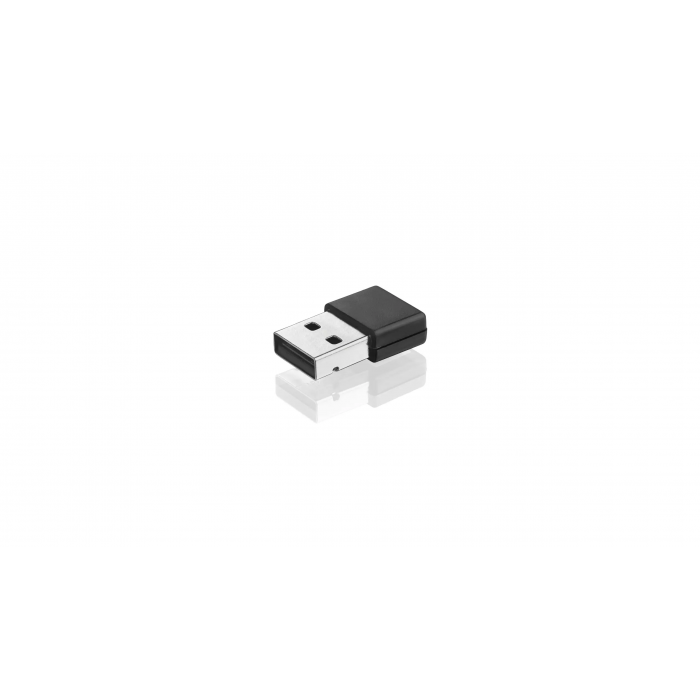

WLAN USB stick CU8210-D001-0200
With the CU8210-D001-0200 WLAN stick, Beckhoff Industrial PCs can be equipped with a WLAN module and operated under Windows CE in client mode.
The WLAN sticks are fully compatible with the 802.11b, g, n WLAN standards and enable encrypted data exchange at up to 150 Mbit/s. The WLAN sticks support 20 MHz and 40 MHz transmission bandwidths.
WLAN standards: 802.11 b, g, n
Operating system: Windows CE 6, Windows CE 7
Encryption scheme: WEP, WPA/WPA2 (TKIP/AES)
Transmission rate: max. 72.2 Mbit/s (20 MHz), 150 Mbit/s (40 MHz)
Dimensions (W x H x D): 14.4 mm x 5.8 mm x 23.4 mm
Operating temperature: -20…+80 °C
Protection rating: IP20
Approvals/markings: Europe, China
| SKU | CU8210-D001-0200 |
|---|
