Specifications dimensions and weights:

• Depth: 46.5 mm.
• Depth (inches): 1.831 inch.
• Depth including DIN rail: 47.5 mm.
• Height: 56 mm.
• Height (inches): 2.205 inch.
• Width: 6.1 mm.
• Width (inches): 0.24 inch.
• Net weight: 18.5 g.

Temperatures:

• Storage temperature: -25 °C - 55 °C.
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Continuous operating temp., min.: -60 °C.
• Continuous operating temp., max.: 130 °C.

Environmental Product Compliance:

• REACH SVHC: /.

Material data:

• Material: Wemid.
• Colour: Green/yellow.
• UL 94 flammability rating: V-0.

Rating data IECEx/ATEX:

• Certificate No. (ATEX): DEMKO14ATEX1338U.
• Certificate No. (IECEX): IECEXULD14.0005U.
• Wire cross section max. (ATEX): 4 mm².
• Wire cross section max. (IECEX): 4 mm².
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Marking EN 60079-7: Ex eb II C Gb.
• Ex 2014/34/EU label: II 2 G D.

System specifications:

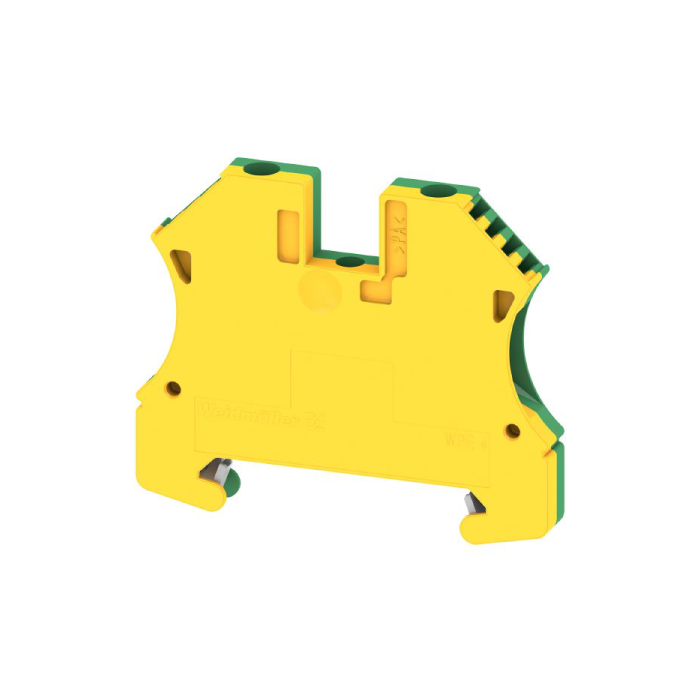

• Version: Screw connection, With PE connection, in closed state.
• End cover plate required: No.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Number of potentials per tier: 1.
• Levels cross-connected internally: No.
• PE connection: Yes.
• Rail: TS 35.
• N-function: No.
• PE function: Yes.
• PEN function: No.

Additional technical data:

• Explosion-tested version: Yes.
• Installation advice: when screwed in.
• Interlock: for screw fixing.
• Number of similar terminals: 1.
• Open sides: Closed.
• Type of mounting: when screwed in.

Conductors for clamping (additional connection):

• Connection type, additional connection: Screw connection.

Conductors for clamping (rated connection):

• Blade size: 0.6 x 3.5 mm.
• Clamping range, max.: 6 mm².
• Clamping range, min.: 0.13 mm².
• Clamping screw: M 3.
• Connection cross-section, stranded, max.: 6 mm².
• Connection cross-section, stranded, min.: 0.5 mm².
• Connection direction: on side.
• Gauge to IEC 60947-1: A4.
• Number of connections: 2.
• Stripping length: 10 mm.
• Tightening torque, max.: 1 Nm.
• Tightening torque, min.: 0.5 Nm.
• Torque level with DMS electric screwdriver: 2.
• Type of connection: Screw connection.
• Wire connection cross section, finely stranded, max.: 6 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 4 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 4 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
• Wire connection cross-section, solid core, max.: 6 mm².
• Wire connection cross-section, solid core, min.: 0.5 mm².

CSA rating data:

• Certificate No. (CSA): 200039-1888378.
• Wire cross section max. (CSA): 10 AWG.
• Wire cross section min. (CSA): 26 AWG.

Dimensions:

• TS 35 offset: 28 mm.

General:

• Installation advice: when screwed in.
• Rail: TS 35.
• Standards: IEC 60947-7-2.

PE rating data:

• Rated short-time current: 480 A (4 mm²).
• Centre screw on PE terminals: M 2.5.
• Tightening torque range for fixing screw: 0.4 - 0.8 Nm.
• PEN function: No.

Rating data:

• Rated cross-section: 4 mm².
• Rated voltage to adjoining terminal: 800 V.
• Rated DC voltage: 800 V.
• Standards: IEC 60947-7-2.
• Volume resistance according to IEC 60947-7-x: 1 mΩ.
• Rated impulse withstand voltage to adjacent terminal: 8 kV.
• Power loss in accordance with IEC 60947-7-x: 1.02 W.
• Pollution severity: 3.

UL rating data:

• Certificate No. (UR): E60693.
• Conductor size Factory wiring max. (UR): 10 AWG.
• Conductor size Factory wiring min. (UR): 26 AWG.
• Conductor size Field wiring max. (UR): 10 AWG.
• Conductor size Field wiring min. (UR): 22 AWG.
