Specifications:

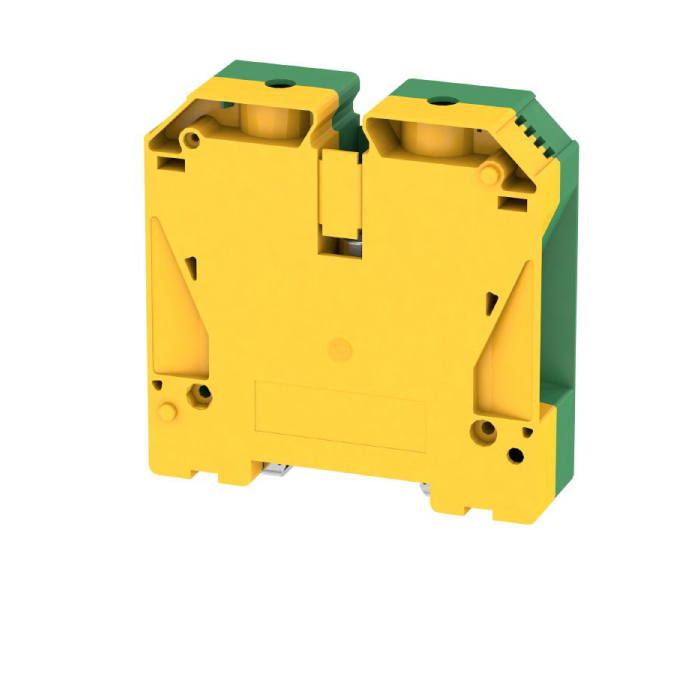

• Version: PE terminal, Screw connection.
• Quantity: 5.
• Depth: 90 mm.
• Depth including DIN rail: 91 mm.
• Height: 91 mm.
• Width: 27 mm.
• Storage temperature: -25 °C...55 °C.
• Continuous operating temp., min: -60 °C.
• Continuous operating temp., max: 130 °C.
• Material: Wemid.
• Color: green/yellow.
• UL 94 flammability rating: V-0.
• Interlock: for screw fixing.
• Number of similar terminals: 1.
• Open sides: closed.
• Standards: IEC 60947-7-2.

System specifications:

• No End cover plate required.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Number of potentials per tier: 1.
• No Levels cross-connected internally.
• PE connection.
• Rail: TS 35.
• No N-function.
• PE function.
• PEN function.

PE rating data:

• Rated short-time current: 11400 A (95 mm²).
• Centre screw on PE terminals: M 5.
• Tightening torque range for fixing screw: 3.0...4.0 Nm.

Rating data:

• Rated cross-section: 95 mm².
• Rated voltage to adjoining terminal: 1,000 V.
• Rated DC voltage: 1,000 V.
• Volume resistance according to IEC 60947-7-x: 0.14 mΩ.
• Rated impulse withstand voltage to adjacent terminal: 8 kV.
• Power loss in accordance with IEC 60947-7-x: 7.42 W.
• Pollution severity: 3.
