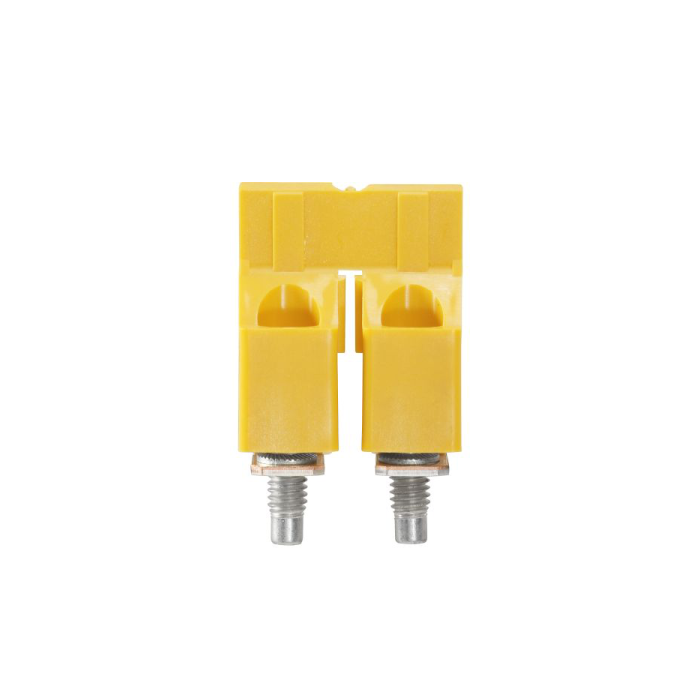

WQV 16/2
WQV 16/2:
- Screwable cross-connections are straightforward to install and remove.
- Due to the large contact surface, even high currents can be transmitted with optimal contact reliability.
Dimensions and weights:
- Depth: 27 mm.
- Depth (inches): 1.063 inch.
- Height: 21.4 mm.
- Height (inches): 0.843 inch.
- Width: 10.4 mm.
- Width (inches): 0.409 inch.
- Net weight: 7.36 g.
Temperatures:
- Storage temperature: -25 °C - 55 °C.
- Continuous operating temp., min.: -60 °C.
- Continuous operating temp., max.: 130 °C.
Environmental Product Compliance:
- REACH SVHC: /.
Material data:
- Material: PA 66.
- Colour: yellow.
- UL 94 flammability rating: V-0.
System specifications:
- Version: For the terminals.
Additional technical data:
- Installation advice: Direct mounting.
- Type of fixing: when screwed in.
Cross-connector:
- Number of cross-connected terminals: 2.
- Rated current, 2-pole: 101 A.
- Rated current, multi-pole: 101 A.
- Tightening torque range for fixing screw: 1.2 – 2.4 Nm.
- Type: Cross-connector.
Dimensions:
- Pitch in mm (P): 11.9 mm.
- TS 35 offset: 28 mm.
General:
- Installation advice: Direct mounting.
- Number of poles: 2.
Rating data:
- Rated current: 101 A.
| SKU | 1053260000 |
|---|---|
| Brand | Weidmuller |
