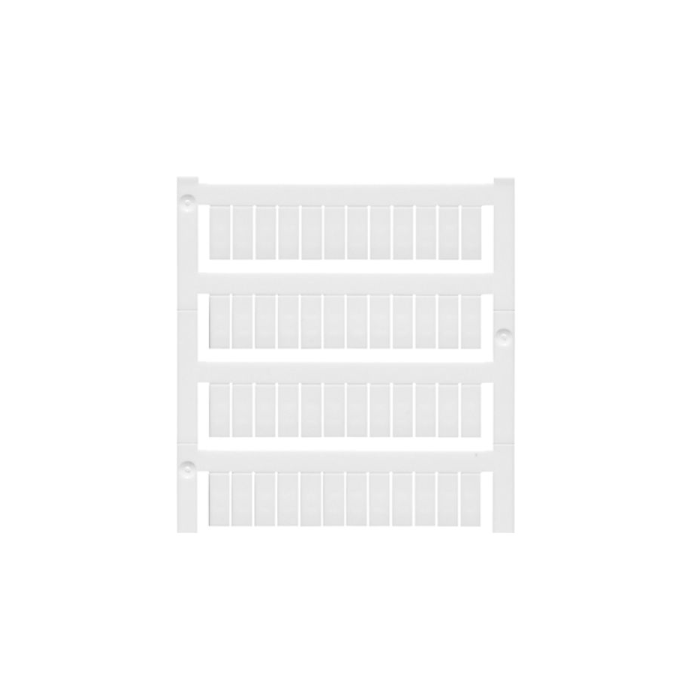

WS 12/5 MC NE WS

ZAR 0.00 ZAR 0.00
Out of stock
SKU
1609860000

Pricing available on request

WS 12/5 MC NE WS:

  • WS markers are an ideal complement for W-series connections.
  • Because of their system compatibility, the WS tags can also be utilized with the I-series and Z-series.
  • The enormous marking surfaces support not only extended character strings but also multi-line text.
  • For labels with lengthy, personalized character strings, WS markers are perfect.
  • Printing with PrintJet CONNECT and/or Plotter is possible thanks to the tried-and-true MultiCard format.
  • Can be installed in strips or separately.
  • Markers in the well-established MultiCard format.
  • For bespoke printing, please email us a file of our labelling program, M-Print PRO or M-Print PRO Online (without installation), with your labelling parameters.

Dimensions and weights:

  • Height: 12 mm.
  • Height (inches): 0.472 inch.
  • Width: 5 mm.
  • Width (inches): 0.197 inch.
  • Net weight: 0.141 g.

Temperatures:

  • Operating temperature range: -40...100 °C.
  • Continuous operating temp., min.: -50 °C.

Environmental Product Compliance:

  • REACH SVHC: /.
  • RoHS Compliance Status: Compliant without exemption.

General data:

  • Application/manufacturer: Weidmueller, Allen-Bradley.
  • Colour: white.
  • compatible printer: PRINTJET CONNECT.
  • Halogen: No.
  • Material: Polyamide 66.
  • Material colour according to resistance code: 9.
  • Number of markers per combination: 1 MultiCard = Terminal marker.
  • Number of markers per packaging unit:
    • Form of supply: MultiCard.
  • Operating temperature range: -40...100 °C.
  • Operating temperature range, max.: 100 °C.
  • Operating temperature range, min.: -40 °C.
  • Printed characters: neutral.
  • UL 94 flammability rating: V-2.
  • Width: 5 mm.

Connector markers:

  • Pitch in mm (P): 5 mm.
