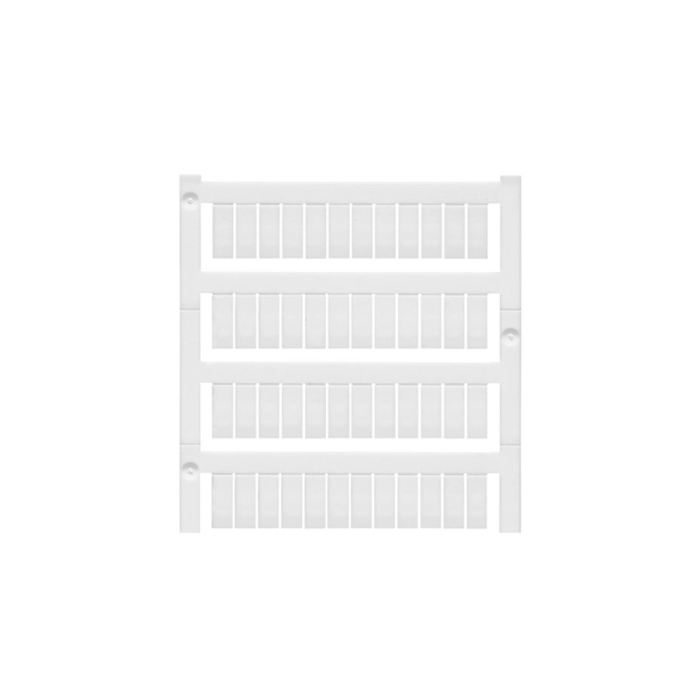

WS 12/6 MC NE WS
Pricing available on request
WS 12/6 MC NE WS:
- WS markers are an ideal complement for W-series connections.
- Because of their system compatibility, the WS tags can also be utilized with the I-series and Z-series.
- The enormous marking surfaces support not only extended character strings but also multi-line text.
- For labels with lengthy, personalized character strings, WS markers are perfect.
- Printing with PrintJet CONNECT and/or Plotter is possible thanks to the tried-and-true MultiCard format.
- Can be installed in strips or separately.
- Markers in the well-established MultiCard format.
- For bespoke printing, please email us a file of our labelling program, M-Print PRO or M-Print PRO Online (without installation), with your labelling parameters.
Dimensions and weights:
- Height: 12 mm.
- Height (inches): 0.472 inch.
- Width: 6 mm.
- Width (inches): 0.236 inch.
- Net weight: 0.163 g.
Temperatures:
- Operating temperature range: -40...100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Application/manufacturer: Weidmueller, Allen-Bradley.
- Colour: white.
- compatible printer: PRINTJET CONNECT.
- Halogen: No.
- Material: Polyamide 66.
- Material colour according to resistance code: 9.
- Number of markers per combination: 1 MultiCard = Terminal marker.
- Number of markers per packaging unit:
- Form of supply: MultiCard.
- Operating temperature range: -40...100 °C.
- Operating temperature range, max.: 100 °C.
- Operating temperature range, min.: -40 °C.
- Printed characters: neutral.
- UL 94 flammability rating: V-2.
- Width: 6 mm.
Connector markers:
- Pitch in mm (P): 6 mm.
SKU | 1609900000 |
---|---|
Brand | Weidmuller |
