Specifications:

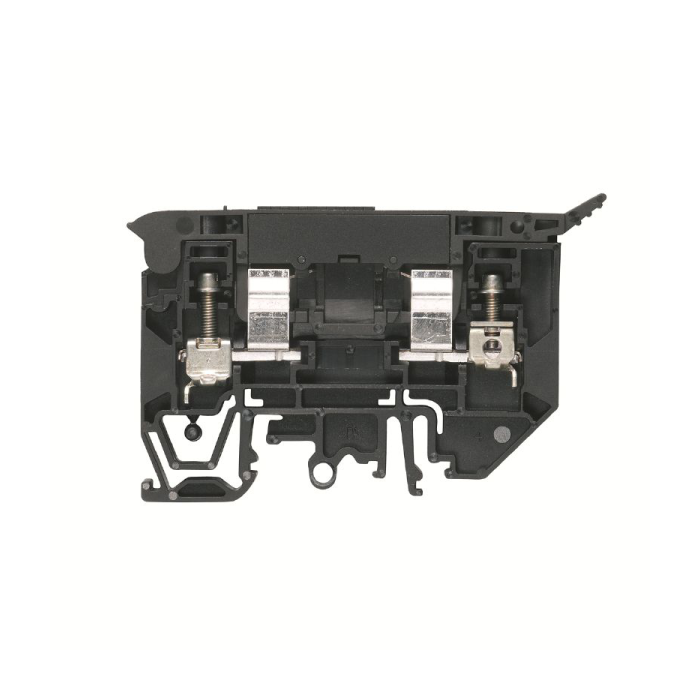

• Version: Fuse terminal, Screw connection, Fuse isolator, with LED, One end without connector, Screw connection.
• Quantity: 25.
• Depth: 53.5 mm.
• Height: 81.6 mm.
• Width: 9.1 mm.
• Storage temperature: -25 °C...55 °C.
• Continuous operating temp., min: -50 °C.
• Continuous operating temp., max: 120 °C.
• Material: Wemid.
• Color: black.
• UL 94 flammability rating: V-0.
• Standards: IEC 60947-7-3.
• Number of similar terminals: 1.
• Open sides: right.
• Type of mounting: Snap-on.
• TS 35 offset: 25 mm.

System specifications:

• End cover plate required.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Number of potentials per tier: 1.
• No Levels cross-connected internally.
• No PE connection.
• Rail: TS 35, TS 32.
• No N-function.
• No PE function.
• No PEN function.

Rating data:

• Rated cross-section: 4 mm².
• Rated voltage: 250 V.
• Rated voltage to adjoining terminal: 500 V.
• Rated DC voltage: 250 V.
• Rated current: 10 A.
• Current at maximum wires: 6.3 A.
• Volume resistance according to IEC 60947-7-x: 1 m Ω.
• Rated impulse withstand voltage: 6 V.
• Power loss in accordance with IEC 60947-7-x: 1.02 W.
