Specifications temperatures:

• Storage temperature: -25 °C - 55 °C.
• Continuous operating temp., min.: -50 °C.
• Continuous operating temp., max.: 120 °C.

Environmental Product Compliance:

• REACH SVHC: /.

Material data:

• Material: Wemid.
• Colour: dark beige.
• UL 94 flammability rating: V-0.

System specifications:

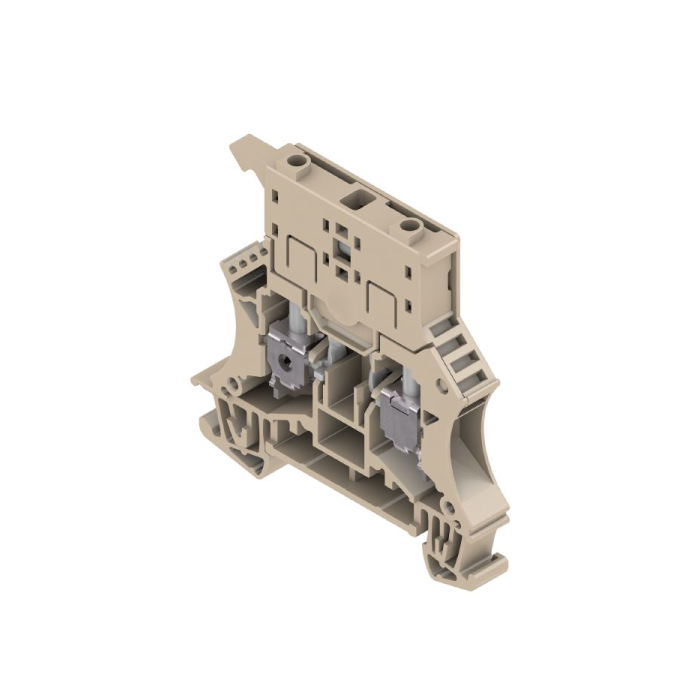

• Version: Screw connection, Fuse isolator, for screwable cross-connection, One end without connector.
• End cover plate required: Yes.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Number of potentials per tier: 1.
• Levels cross-connected internally: No.
• PE connection: No.
• Rail: TS 35.
• N-function: No.
• PE function: No.
• PEN function: No.

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection):

• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: 2.5 mm².
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: 0.5 mm².
• Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm².
• Wire cross-section, finely stranded, two clampable wires, max.: 2.5 mm².

Additional technical data:

• Explosion-tested version: No.
• Number of similar terminals: 1.
• Open sides: right.
• Type of mounting: Snap-on.

Conductors for clamping (additional connection):

• Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: 6 mm².
• Connection type, additional connection: Screw connection.

Conductors for clamping (rated connection):

• Blade size: 0.8 x 4.0 mm.
• Clampable conductor:
• Connection specification: Screw connection.
• Cross-section for conductor connection:
• Type: solid, H05(07) V-U.
• min.: 0.5 mm².
• max.: 10 mm².
• nominal: 6 mm².
• wire end ferrule:
• Stripping length:
• min.: 12 mm.
• max.: 12 mm.
• nominal: 12 mm.
• Tightening torque:
• min.: 0.8 Nm.
• max.: 1.6 Nm.
• Connection specification: Screw connection.
• Cross-section for conductor connection:
• Type: stranded, H07V-R.
• min.: 1.5 mm²
• max.: 10 mm².
• nominal: 6 mm².
• wire end ferrule:
• Stripping length:
• min.: 12 mm.
• max.: 12 mm.
• nominal: 12 mm.
• Tightening torque:
• min.: 0.8 Nm.
• max.: 1.6 Nm.
• Connection specification: Screw connection.
• Cross-section for conductor connection:
• Type: flexible, H05(07) V-K.
• min.:0.5 mm².
• max.:10 mm².
• nominal:6 mm².
• wire end ferrule:
• Stripping length:
• min.:12 mm.
• max.:12 mm.
• nominal:12 mm.
• Tightening torque:
• min.:0.8 Nm.
• max.:1.6 Nm.
• Clamping range, max.: 10 mm².
• Clamping range, min.: 0.5 mm².
• Clamping screw: M 3.5.
• Connection cross-section, stranded, max.: 10 mm².
• Connection cross-section, stranded, min.: 1.5 mm².
• Connection direction: on side.
• Gauge to IEC 60947-1: A5.
• Number of connections: 2.
• Stripping length: 12 mm.
• Tightening torque, max.: 1.6 Nm.
• Tightening torque, min.: 0.8 Nm.
• Torque level with DMS electric screwdriver: 3.
• Type of connection: Screw connection.
• Type of connection 2: Screw connection.
• Wire connection cross section AWG, max.: AWG 8.
• Wire connection cross section AWG, min.: AWG 20.
• Wire connection cross section, finely stranded, max.: 10 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 6 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 6 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
• Wire connection cross-section, solid core, max.: 10 mm².
• Wire connection cross-section, solid core, min.: 0.5 mm².

CSA rating data:

• Certificate No. (CSA): 200039-1057876.
• Current size C (CSA): 10 A.
• Voltage size C (CSA): 600 V.
• Wire cross section max. (CSA): 8 AWG.
• Wire cross section min. (CSA): 20 AWG.

Fuse terminals:

• Cartridge fuse: G-Si. 5 x 20.
• Display: Without LED.
• Fuse holder (cartridge holder): Pivoting.
• Operating voltage, max.: 250 V.

General:

• Rail: TS 35.
• Standards: IEC 60947-7-3, IEC 60947-7-1.
• Wire connection cross section AWG, max.: AWG 8.
• Wire connection cross section AWG, min.: AWG 20.

Rating data:

• Rated cross-section: 6 mm².
• Rated voltage: 500 V.
• Rated voltage to adjoining terminal: 500 V.
• Rated DC voltage: 500 V.
• Rated current: 6.3 A.
• Current at maximum wires: 6.3 A.
• Standards: IEC 60947-7-3, IEC 60947-7-1.
• Volume resistance according to IEC 60947-7-x: 0.78 mΩ.
• Rated impulse withstand voltage: 6 kV.
• Power loss in accordance with IEC 60947-7-x: 1.31 W.
• Pollution severity: 3.

UL rating data:

• Certificate No. (UR): E60693.
• Conductor size Factory wiring max. (UR): 8 AWG.
• Conductor size Factory wiring min. (UR): 22 AWG.
• Conductor size Field wiring max. (UR): 8 AWG.
• Conductor size Field wiring min. (UR): 22 AWG.
• Current size C (UR): 9.5 A.
• Voltage size C (UR): 600 V.

Important note:

• Product information: The voltage depends on the selected fuse element or the selected indicator light.
