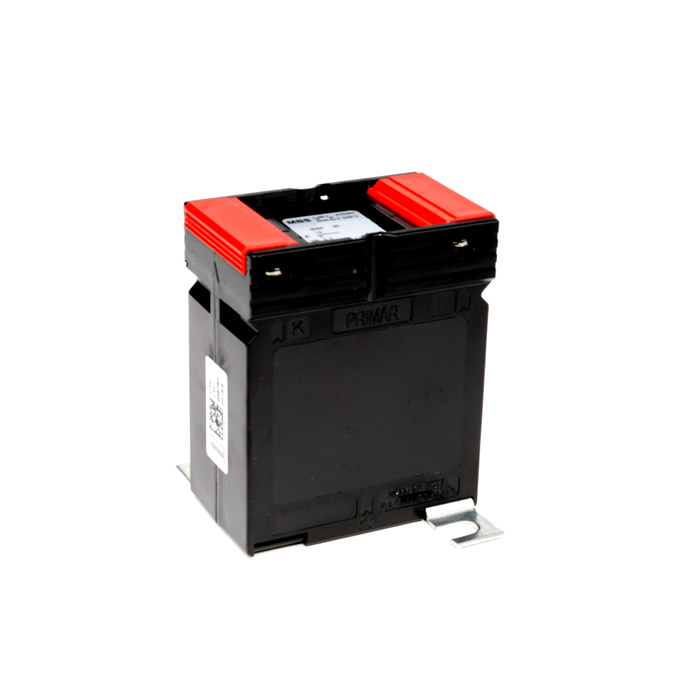

WSK40 30/5A PRIMARY WOUND CT cl 1
General details:
- Class of isolation: E.
- Up to 0.72 kV is the maximum operating voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Primary wound current transformers (5A secondary - class 1),
- WSK 40 primary wound current transformers,
- MODEL WSK 40,
- RATIO 30/5A,
- DESCRIPTION Primary wound current transformer,
- CLASS 1,
- VA 10,
- DIMENSIONS (MM) (H) 89 x (W) 71 x (D) 45
| Brand | MBS |
|---|
