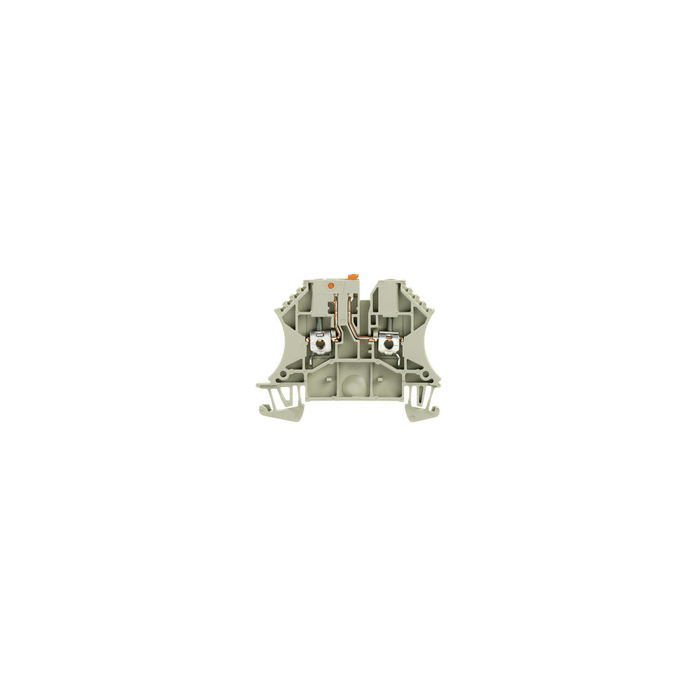

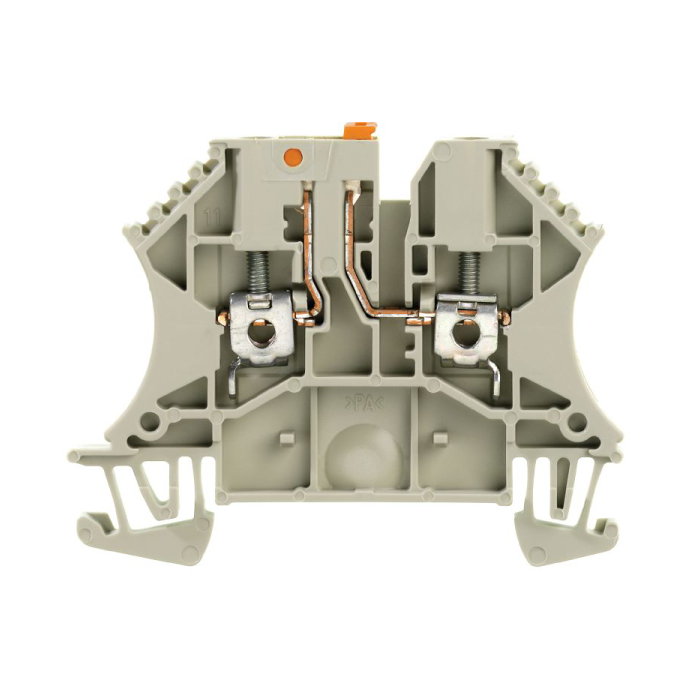

WTR 2.5
Description:
- For testing and safety reasons, it makes sense in some applications to add a test point or a disconnect element to the feed-through terminal.
- Test-disconnect terminals are used to measure electric circuits when there is no voltage present.
- Although the clearance and creepage distance between disconnecting points are not measured in terms of dimensions, the stated rated impulse voltage strength needs to be proven.
Specifications:
- Version: Test-disconnect terminal, Screw connection.
- Quantity: 100.
- Depth: 48 mm.
- Depth including DIN rail: 49 mm.
- Height: 60 mm.
- Width: 5.1 mm.
- Storage temperature: -25 °C...55 °C.
- Continuous operating temp., min: -50 °C.
- Continuous operating temp., max: 120 °C.
- Material: Wemid.
- Color: Dark beige.
- UL 94 flammability rating: V-0.
- Standards: IEC 60947-7-1.
System specifications:
- End cover plate required.
- Number of potentials: 1.
- Number of levels: 1.
- Number of clamping points per level: 2.
- Number of potentials per tier: 1.
- No Levels cross-connected internally.
- No PE connection.
- Rail: TS 35.
- No N-function.
- No PE function.
- No PEN function.
Disconnect terminals:
- Without Cross-disconnect.
- No Integral test socket.
- Slitting: Pivoting.
Rating data:
- Rated cross-section: 2.5 mm².
- Rated voltage to adjoining terminal: 500 V.
- Rated DC voltage: 500 V.
- Rated current: 24 A.
- Current at maximum wires: 24 A.
- Volume resistance according to IEC 60947-7-x: 1.33 m Ω.
- Rated impulse withstand voltage to adjacent terminal: 6 kV.
- Power loss in accordance with IEC 60947-7-x: 0.77 W.
- Pollution severity: 3.
