Description:

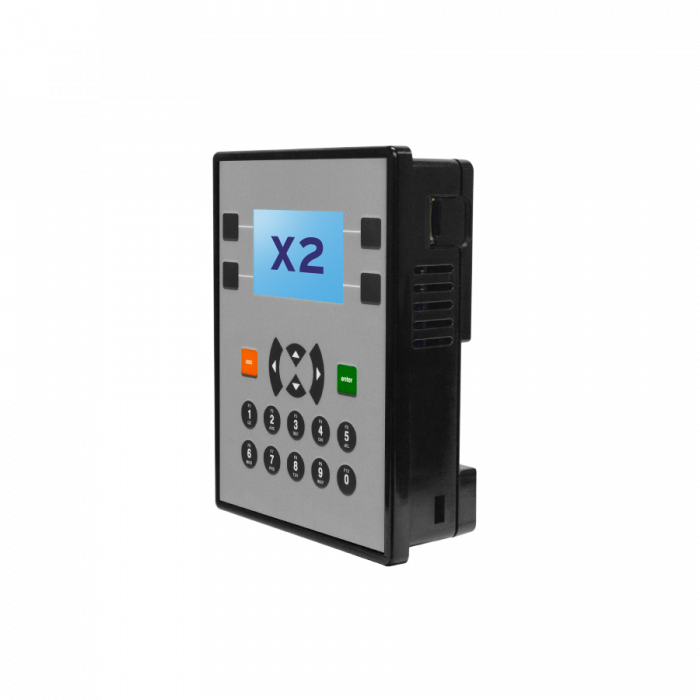

• X2 OCS with Twelve (12) Digital inputs compatible with 24VDc – can be used for four 10KHz High Speed Counters.
• Six (6) Relay Outputs 3A and two (2) DC sinking outputs.
• Four (4) 12-bit Analog inputs 0-20mA.
• Two (2) Analog Outputs 0-20mA.
• The X2 is the second product of the streamlined Micro OCS Series of embedded I/O controllers.
• All units feature a built-in logic engine, operator interface, networking, and I/O.
