Specifications rating data IECEx/ATEX:

• Certificate No. (IECEX): IECEXULD13.0005U.
• Wire cross section max. (IECEX): 16 mm².

Safety notice:

• Installation instructions:
• The potential equalisation (PE) rail modules are suitable for use in housings in atmospheres with flammable gases and dust.
• For use in areas with flammable gases, these housings must meet the requirements of EN 60079-0 and EN 60079-7.
• For use in areas with flammable dust, these housings must meet the requirements of EN 60079-0 and EN 60079-31.
• When combined with other terminal block ranges and sizes, and when other accessories are used, you must comply with the clearance and creepage distances given.
• Regarding accessory use, the manufacturer's instructions must be followed.
• List of restrictions:
• The PE rail modules are considered one component, with Ex marking when used with the busbar holders of type SH and WEW.
• When used independently, the above-named components are not covered by this certificate.

System specifications:

• Version: for busbar 10 x 3 mm.

Additional technical data:

• Installation advice Feed-through (bushing).
• Type of mounting when screwed in.

CSA rating data:

• Certificate No. (CSA): 12400-237.
• Wire cross section max. (CSA): 6 AWG.
• Wire cross section min. (CSA): 12 AWG.

Conductors for clamping (rated connection):

• Clamping range, max: 25 mm².
• Clamping range, min: 2.5 mm².
• Clamping screw M 4.
• Connection cross-section stranded max: 25 mm².
• Connection cross-section stranded min: 16 mm².
• Stripping length: 16 mm.
• Tightening torque, min: 2.6 Nm.

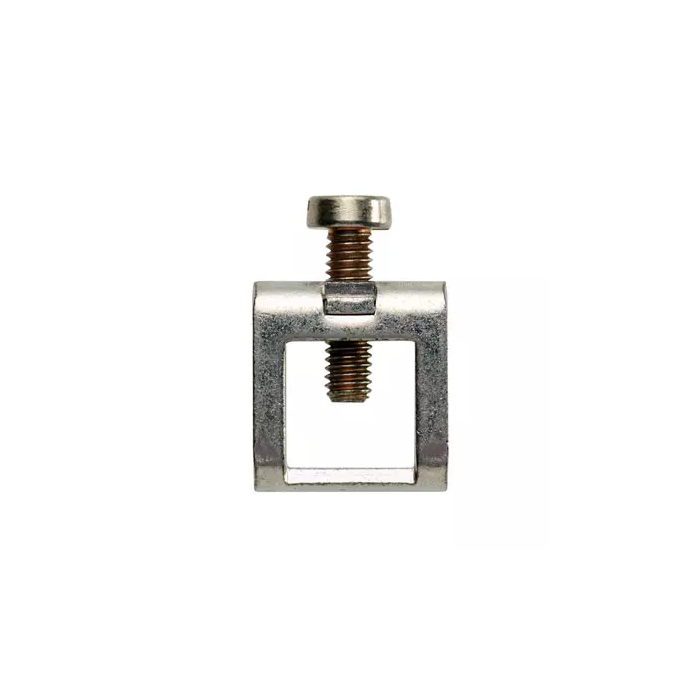

• Type of connection: Clamping yoke.
• Wire connection cross section, finely stranded, max: 16 mm².
• Wire connection cross section, finely stranded, min: 2.5 mm².
• Wire connection cross-section, solid core, max: 16 mm².
• Wire connection cross-section, solid core, min: 2.5 mm².

Dimensions:

• TS 35 offset: 39 mm.

General:

• Installation advice: Feed-through (bushing).
