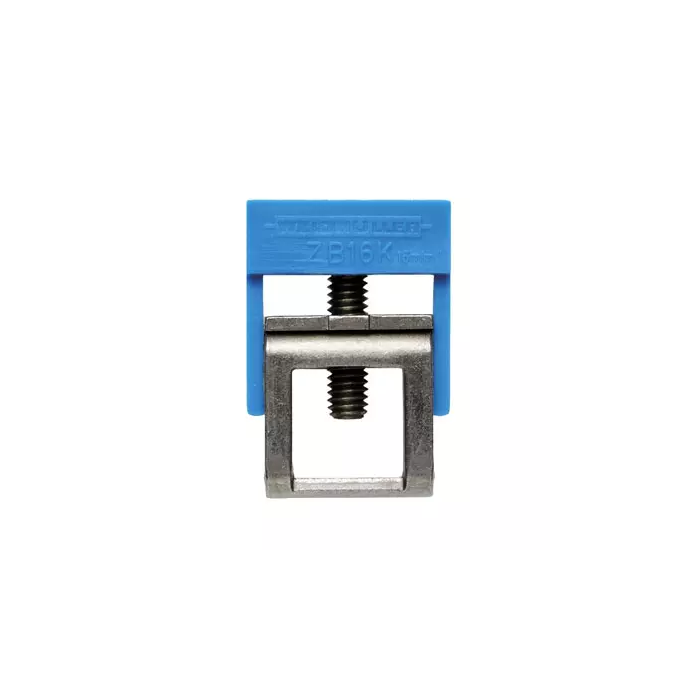

Busbar clamping yoke:

  • Bus bar taps with insulation provide finger safety on one hand.
  • On the other side, coloured insulation shows the respective potential, such as the neutral conductor or PE.

Weights and dimensions:

  • Depth: 26.8 mm.
  • Height: 19 mm.
  • Width: 10 mm.
  • Net weight: 8.704 g.

System specifications:

  • Version: for busbar 10 x 3 mm.

Additional technical data:

  • Installation advice: Feed-through (bushing).
  • Type of mounting: when screwed in.

CSA rating data:

  • Certificate No. (CSA): 12400-237.
  • Wire cross section max. (CSA): 6 AWG
  • Wire cross section min. (CSA): 12 AWG.

Conductors for clamping (rated connection):

  • Clamping screw: M 4.
  • Connection cross-section, stranded, max: 25 mm².
  • Connection cross-section, stranded, min: 16 mm².
  • Stripping length: 16 mm.
  • Tightening torque, min: 2.6 Nm.
  • Type of connection: Clamping yoke.
  • Wire connection cross section, finely stranded, max.: 16 mm².
  • Wire connection cross section, finely stranded, min.: 2.5 mm².
  • Wire connection cross-section, solid core, max.: 16 mm².
  • Wire connection cross-section, solid core, min.: 2.5 mm².

General:

  • Installation advice: Feed-through (bushing).

UL rating data:

  • Certificate No. (UR): E60693.
  • Conductor size Factory wiring max. (UR): 4 AWG.
  • Conductor size Factory wiring min. (UR): 12 AWG.
  • Conductor size Field wiring max. (UR): 4 AWG.
  • Conductor size Field wiring min. (UR): 12 AWG.

Temperatures:

  • Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.

Material data:

  • Material: Steel.
  • Insulating material PA
  • Colour: Silver.
