ZBE 6K BL

ZAR 61.01
Out of stock
SKU
0525980000

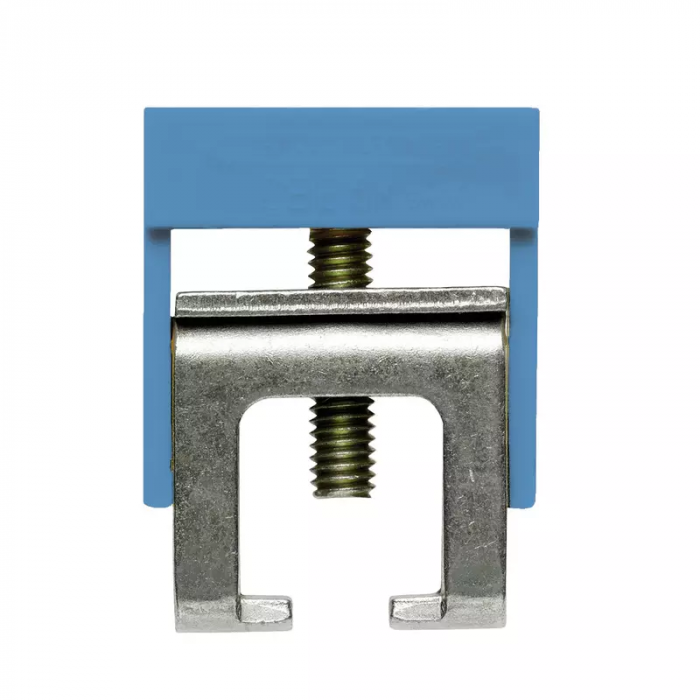

Busbar clamping yoke:

  • Bus bar taps with insulation provide finger safety on one hand.
  • On the other side, coloured insulation shows the respective potential, such as the neutral conductor or PE.

Weights and dimensions:

  • Depth: 19.5 mm.
  • Height: 22.5 mm.
  • Width: 8 mm.
  • Net weight: 2.98 g.

System specifications:

  • Version: for busbar 10 x 3 mm.

Additional technical data:

  • Installation advice: Mount directly, Busbar
  • Type of mounting: when screwed in.

CSA rating data:

  • Certificate No. (CSA): 12400-237.
  • Wire cross section max. (CSA): 8 AWG
  • Wire cross section min. (CSA): 22 AWG.

Conductors for clamping (rated connection):

  • Clamping screw: M 4.
  • Stripping length: 19 mm.
  • Tightening torque, min: 1.2 Nm.
  • Type of connection: Clamping yoke.
  • Wire connection cross section, finely stranded, max.: 10 mm².
  • Wire connection cross section, finely stranded, min.: 1.5 mm².
  • Wire connection cross-section, solid core, max.: 10 mm².
  • Wire connection cross-section, solid core, min.: 1 mm².

Dimensions:

  • TS 35 offset: 41 mm.

General:

  • Installation advice: Mount directly, Busbar.

Rating data:

  • Rated cross-section: 6 mm².

Temperatures:

  • Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.

Material data:

  • Material: Steel.
  • Insulating material PA
  • Colour: Blue.
More Information
Brand Weidmuller
