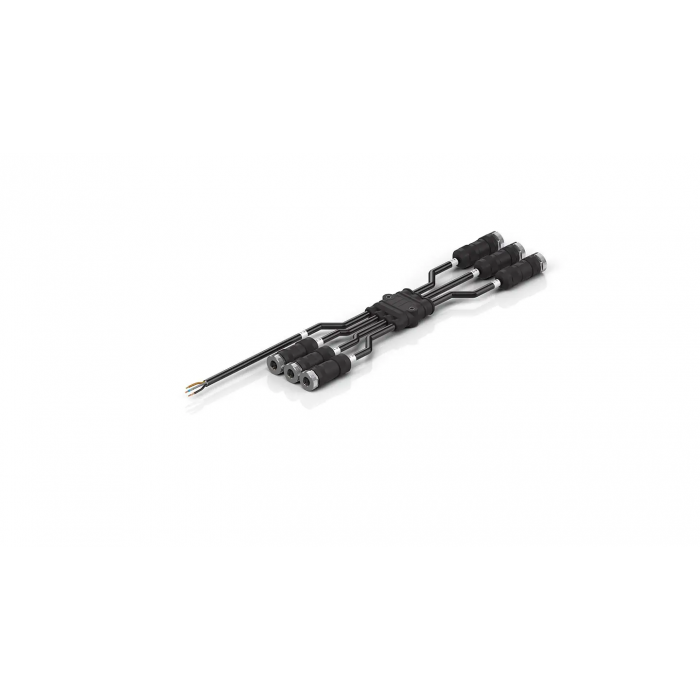

ZC2000-0000-0034 Splitter cable

Head A Shielding: no Installation size: M12 Connector type: socket Contact type: female Number of positions (face): 5-pin (4+PE) Coding: K-coded Wire termination: screw connection Max. wire cross-section: AWG16 (1.5 mm²) with wire end ferrule, AWG14 (2.5 mm²) without wire end ferrule Max. cable outer diameter: 8.0...13.0 mm Body color: black Head B Shielding: no Installation size: M12 Connector type: socket Contact type: female Number of positions (face): 5-pin (4+PE) Coding: K-coded Wire termination: screw connection Max. wire cross-section: AWG16 (1.5 mm²) with wire end ferrule, AWG14 (2.5 mm²) without wire end ferrule Max. cable outer diameter: 8.0...13.0 mm Body color: black Head C Installation size: open end Number of positions (face): 5-wire Head D Shielding: no Installation size: M12 Connector type: socket Contact type: female Number of positions (face): 5-pin (4+PE) Coding: K-coded Wire termination: screw connection Max. wire cross-section: AWG16 (1.5 mm²) with wire end ferrule, AWG14 (2.5 mm²) without wire end ferrule Max. cable outer diameter: 8.0...13.0 mm Body color: black Head E Shielding: no Installation size: M12 Connector type: socket Contact type: female Number of positions (face): 5-pin (4+PE) Coding: K-coded Wire termination: screw connection Max. wire cross-section: AWG16 (1.5 mm²) with wire end ferrule, AWG14 (2.5 mm²) without wire end ferrule Max. cable outer diameter: 8.0...13.0 mm Body color: black Head F Shielding: no Installation size: M12 Connector type: socket Contact type: female Number of positions (face): 5-pin (4+PE) Coding: K-coded Wire termination: screw connection Max. wire cross-section: AWG16 (1.5 mm²) with wire end ferrule, AWG14 (2.5 mm²) without wire end ferrule Max. cable outer diameter: 8.0...13.0 mm Body color: black Head H Shielding: no Installation size: M12 Connector type: socket Contact type: female Number of positions (face): 5-pin (4+PE) Coding: K-coded Wire termination: screw connection Max. wire cross-section: AWG16 (1.5 mm²) with wire end ferrule, AWG14 (2.5 mm²) without wire end ferrule Max. cable outer diameter: 8.0...13.0 mm Body color: black Meterware Cross-section: 2 x 0.75 mm² (AWG18) + 3 x 1.5 mm² (AWG16) Use: fixed installation Material jacket: PVC (polyvinyl chloride) Outer cable diameter: 8.5 mm ± 0.2 mm (0.3346" ± 0.0079") Jacket color: black
