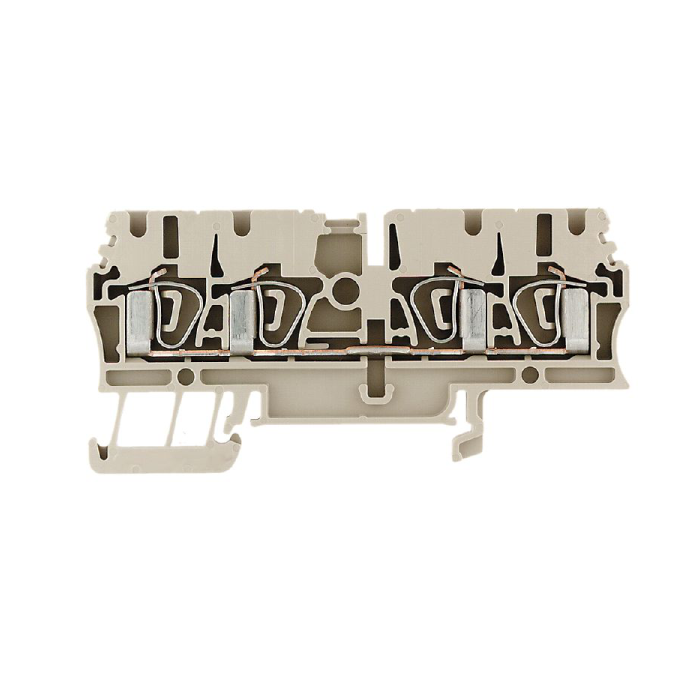

ZDU 2.5/4AN
Pricing available on request
ZDU 2.5/4AN:
- In electrical engineering and panel building, the traditional prerequisite is to pass through power, signal, and data.
- The connecting mechanism, the insulating material, and the the distinctive features of the terminal blocks are their designs.
- For connecting, a feed-through terminal block works well. and/or joining a couple of wires together.
- They could have own one or more concurrently active connection levels potential or shielded from each other.
Material data:
- Material: Wemid
- Colour: dark beige
- UL 94 flammability rating: V-0
Dimensions and weights:
- Depth: 38.5 mm
- Depth including DIN rail: 39.5 mm
- Height: 79.5 mm
- Width: 5.1 mm
- Net weight: 11.59 g
Temperatures:
- Storage temperature: -25 °C...55 °C
- Operating temperature range: for operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Continuous operating temp., min.: -50 °C
- Continuous operating temp., max.: 120 °C
Rating data:
- Rated cross-section: 2.5 mm²
- Rated voltage: 800 V
- Rated DC voltage: 800 V
- Rated current: 24 A
- Current at maximum wires: 27 A
- Standards: IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x: 1.33 mΩ
- Rated impulse withstand voltage: 8 kV
- Power loss in accordance with IEC 60947-7-x: 0.77 W
- Pollution severity: 3
| SKU | 1608570000 |
|---|---|
| Brand | Weidmuller |
