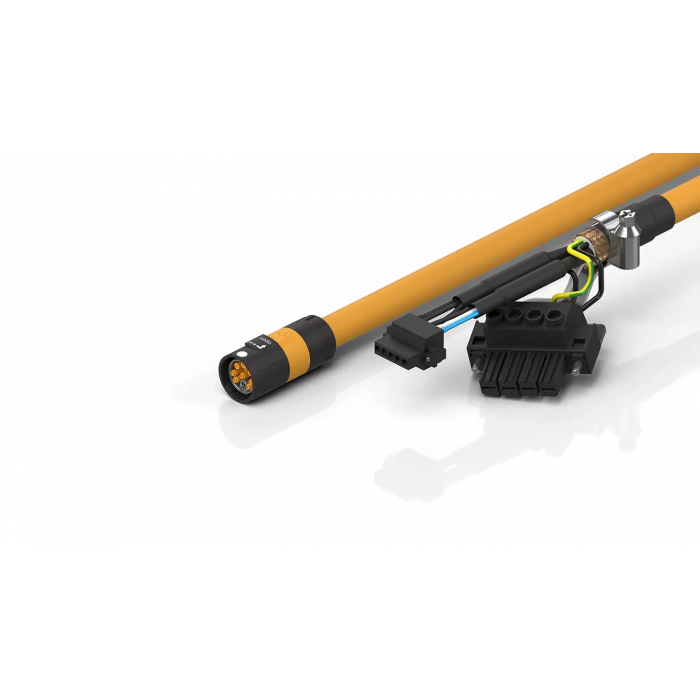

ZK4500-8002-0019C1 Motor connection cable
cables for fixed installation,min. bending radius = 50 mm (5 x OD),(4 x 1.0 mm² + (2 x 0.5 mm²) + (2 x AWG26)), max. cable length (in total) 25 m, vertical 5 m.
Length: 19.00 mm
Head A
Installation size: itec® (Series 915)
Connector type: plug
Contact type: female
Number of positions (face): Power: 3+PE, Signal: 5
Wire termination: crimp connection
Body color: black, similar to RAL 9011
Head B
Installation size: Pitch dimension 7.62 mm
Connector type: plug
Contact type: female
Number of positions (face): 4-pin
Wire termination: Clamping yoke connection
Max. wire cross-section: AWG24 ... AWG8 (0.2 mm² ... 10 mm²)
Body color: black, similar to RAL 9011
Head C
Installation size: Pitch dimension 3.50 mm
Connector type: plug
Contact type: female
Number of positions (face): 5-pin
Wire termination: Clamping yoke connection
Max. wire cross-section: AWG28 ... AWG14 (0.2 mm² ... 1.5 mm²)
Body color: black, similar to RAL 9011
Meterware
Cross-section (power): 1.00 mm² (approx. AWG18)
Cross-section (signal): AWG26 (approx. 0.14 mm²)
Use: fixed installation
Material jacket: PVC (polyvinyl chloride)
Outer cable diameter: 10.0 mm ± 0.3 mm (0.3937" ± 0.0118")
Jacket color: orange
| SKU | ZK4500-8002-0019C1 |
|---|
