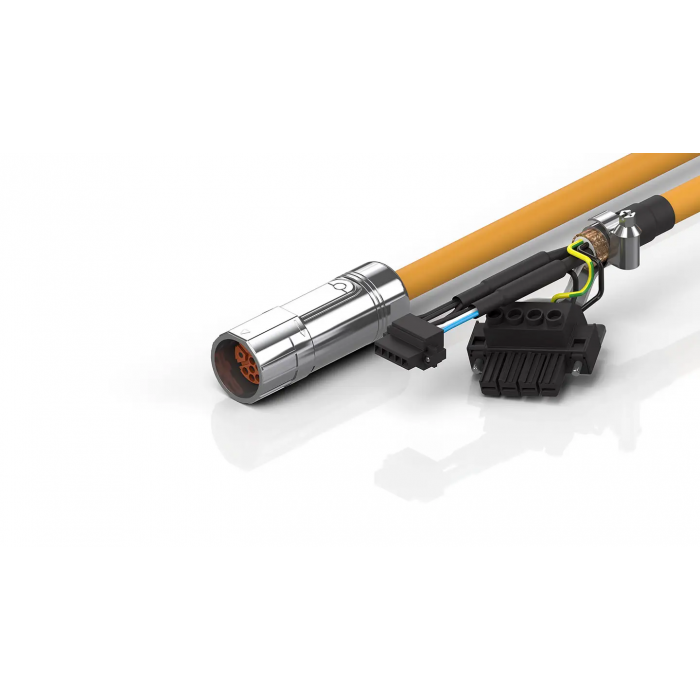

ZK4500-8003-0019 Motor connection cable

Head A Installation size: M23 Connector type: plug Contact type: female Number of positions (face): Power: 3+PE, Signal: 5 Wire termination: crimp connection Body color: metal Head B Installation size: Pitch dimension 7.62 mm Connector type: plug Contact type: female Number of positions (face): 4-pin Wire termination: Clamping yoke connection Max. wire cross-section: AWG24 ... AWG8 (0.2 mm² ... 10 mm²) Body color: black, similar to RAL 9011 Head C Installation size: Pitch dimension 3.50 mm Connector type: plug Contact type: female Number of positions (face): 5-pin Wire termination: Clamping yoke connection Max. wire cross-section: AWG28 ... AWG14 (0.2 mm² ... 1.5 mm²) Body color: black, similar to RAL 9011 Meterware Cross-section (power): 1.50 mm² (approx. AWG16) Cross-section (signal): AWG22 (approx. 0.34 mm²) Use: fixed installation Material jacket: PVC (polyvinyl chloride) Outer cable diameter: 12,2 mm ± 0,4 mm (0,4803" ± 0,0157") Jacket color: orange
