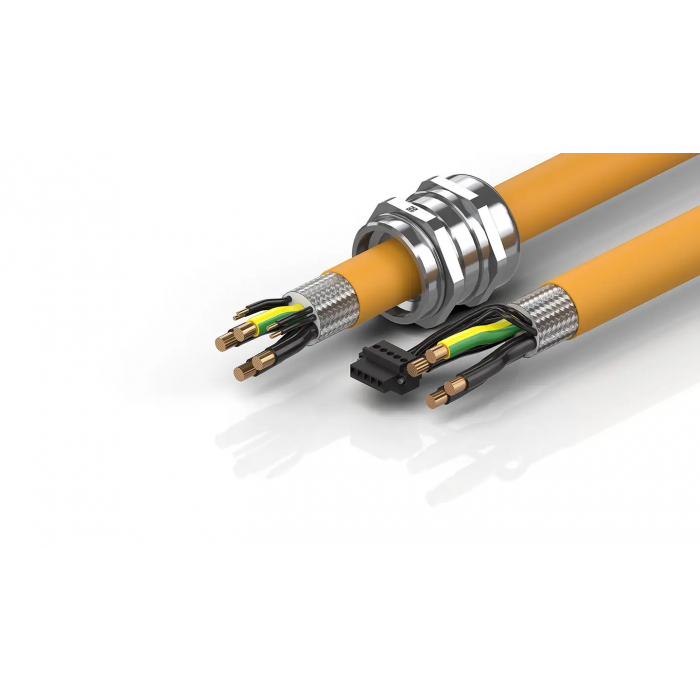

ZK4506-8018-0045 Motor extension cable
flexible, drag-chain suitable cable with 5 million bending cycles, max. 180 m/min, max. 5 m/s², min. bending radius = 250 mm (10 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 16 mm² + (2 x 1.5 mm²) + (2 x 1.5 mm²)). The cable is UL and CSA listed.
Length: 45.00 mm
Head A
Installation size: M40
Connector type: cable gland
Body color: metal
Head B
Installation size: open end
Number of positions (face): 8-wire + shield
Head C
Installation size: Pitch dimension 5.08 mm
Connector type: plug
Contact type: female
Number of positions (face): 5-pin
Wire termination: Clamping yoke connection
Max. wire cross-section: AWG26 ... AWG12 (0.13 mm² ... 4 mm²)
Body color: black, similar to RAL 9011
Meterware
Cross-section (power): 16 mm² (approx. AWG5)
Use: drag-chain suitable
Material jacket: PUR (polyurethane)
Outer cable diameter: 23.0 mm ± 0.5 mm (0.9055" ± 0.0197")
Jacket color: orange
| SKU | ZK4506-8018-0045 |
|---|
