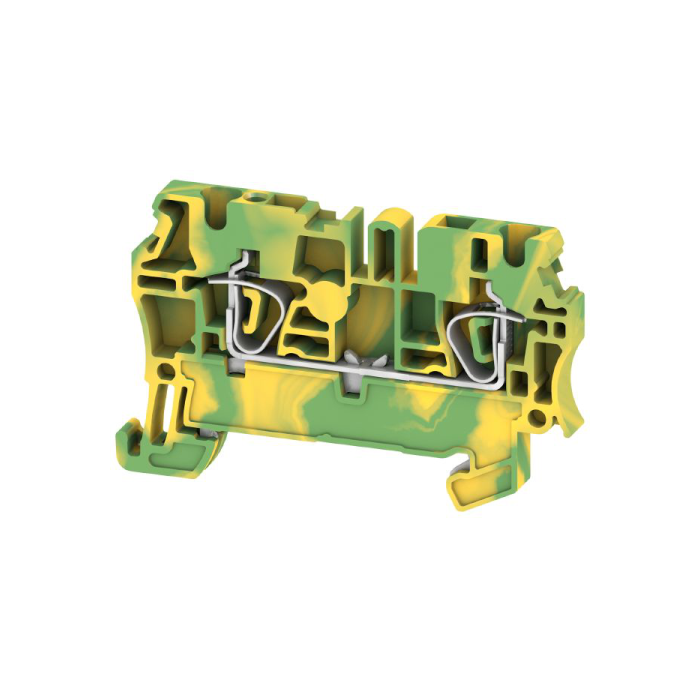

ZPE 2.5
Pricing available on request
ZPE 2.5:
- There are numerous uses for a protective feed through terminal block, which is an electrical conductor used for safety.
- To determine the mechanical and electrical connection if the PE terminal blocks are used to connect copper wires to the mounting support plate.
- They've got one or more places of contact where protective earth conductors can be divided or connected.
Material data:
- Material: Wemid
- Colour: Green/yellow
- UL 94 flammability rating: V-0
Dimensions and weights:
- Depth: 38.5 mm
- Depth including DIN rail: 39.5 mm
- Height: 63 mm
- Width: 5.1 mm
- Net weight: 11.17 g
Temperatures:
- Storage temperature: -25 °C...55 °C
- Operating temperature range: for operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Continuous operating temp., min.: -50 °C
- Continuous operating temp., max.: 120 °C
Rating data:
- Rated cross-section: 2.5 mm²
- Rated voltage to adjoining terminal: 800 V
- Rated DC voltage: 800 V
- Standards: IEC 60947-7-2
- Volume resistance according to IEC 60947-7-x: 1.33 mΩ
- Rated impulse withstand voltage to adjacent terminal: 8 kV
- Power loss in accordance with IEC 60947-7-x: 0.77 W
- Pollution severity: 3
| SKU | 1608640000 |
|---|---|
| Brand | Weidmuller |
