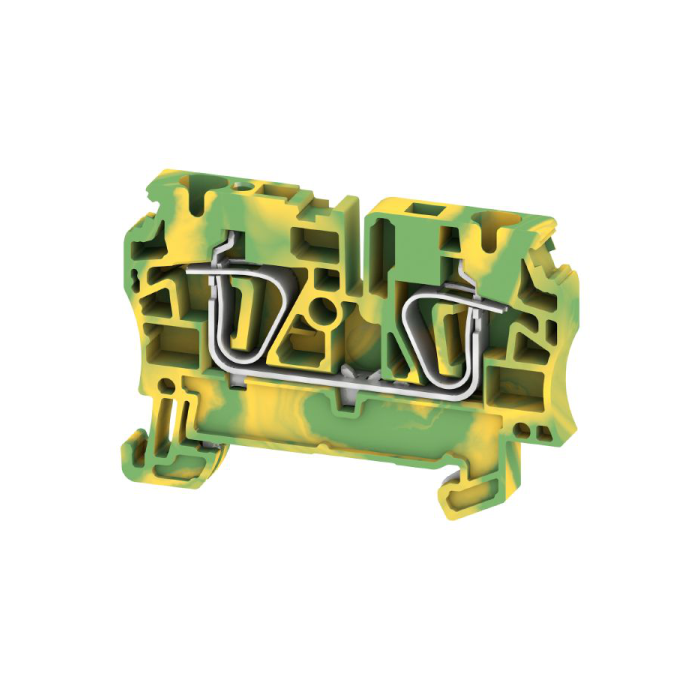

ZPE 4

ZAR 0.00 ZAR 0.00
Out of stock
SKU
1632080000

Pricing available on request

ZPE 4:

  • There are numerous uses for a protective feed through terminal block, which is an electrical conductor used for safety.
  • To determine the mechanical and electrical PE terminal blocks are used to connect copper wires to the mounting support plate.
  • They've got one or more places of contact where protective earth conductors can be divided or connected.

Material data:

  • Material: Wemid
  • Colour: Green/yellow
  • UL 94 flammability rating: V-0

Dimensions and weights:

  • Depth: 43 mm
  • Depth including DIN rail: 43.5 mm
  • Height: 62.5 mm
  • Width: 6.1 mm
  • Net weight: 14.04 g

Temperatures:

  • Storage temperature: -25 °C...55 °C
  • Operating temperature range: for operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
  • Continuous operating temp., min.: -50 °C
  • Continuous operating temp., max.: 120 °C

Rating data:

  • Rated cross-section: 4 mm²
  • Rated voltage to adjoining terminal: 800 V
  • Rated DC voltage: 800 V
  • Standards: IEC 60947-7-2
  • Volume resistance according to IEC 60947-7-x: 1 mΩ
  • Rated impulse withstand voltage to adjacent terminal: 8 kV
  • Power loss in accordance with IEC 60947-7-x: 1.02 W
  • Pollution severity: 3
More Information
SKU 1632080000
Brand Weidmuller
