Specifications:

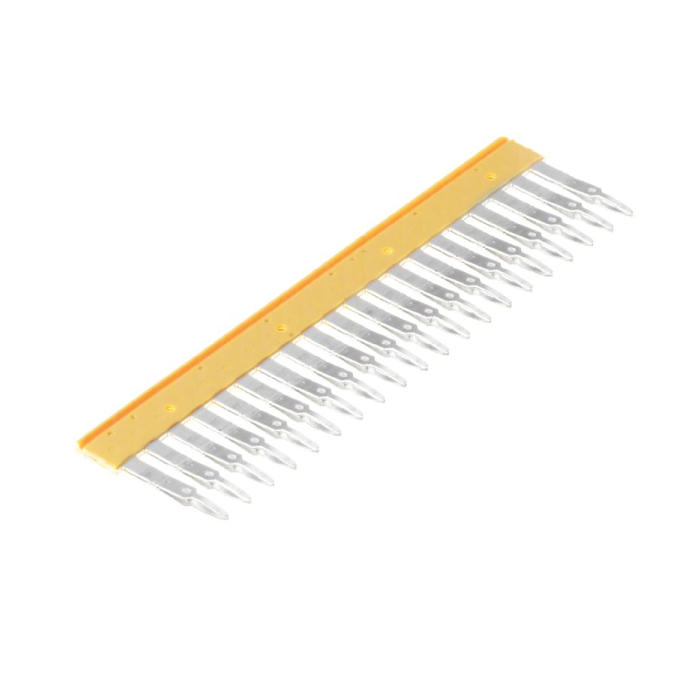

• Version: Z-series, Cross-connector, For the terminals, Number of poles: 20.
• Quantity: 20.
• Depth: 27.6 mm.
• Height: 2.8 mm.
• Width: 99.7 mm.
• Storage temperature: -25 °C...55 °C.
• Continuous operating temp., min: -60 °C.
• Continuous operating temp., max: 130 °C.
• Material: Wemid.
• Color: yellow.
• UL 94 flammability rating: V-0.
• Installation advice: Direct mounting.
• Type of fixing: Plugged.
• Pitch in mm (P): 5.1 mm.
• Number of poles: 20.
• Rated current: 24 A.
• Type: Cross-connector.
• Rated current, 2-pole: 24 A.
• Rated current, multi-pole: 24 A.
