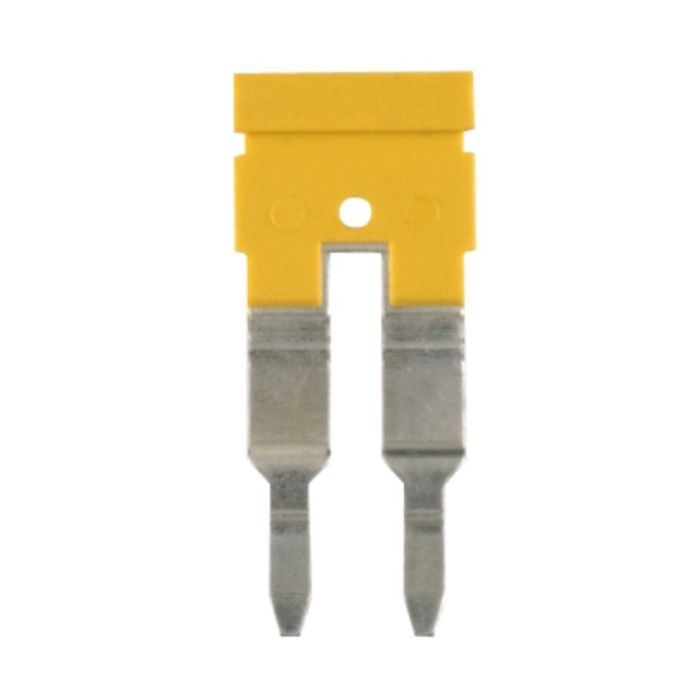

ZQV 4N/2 GE

ZAR 25.08
Out of stock
SKU
1758250000

ZQV 4N/2 GE:

  • The plug-in cross-connections are simple to use and take little time to install.
  • This saves a significant amount of time during installation as compared to screwed alternatives.

Specifications dimensions and weights:

  • Depth: 25.7 mm.
  • Depth (inches): 1.012 inch.
  • Height: 11 mm.
  • Height (inches): 0.433 inch.
  • Width: 2.8 mm.
  • Width (inches): 0.11 inch.
  • Net weight: 1.5 g.

Temperatures:

  • Storage temperature: -25 °C - 55 °C.
  • Continuous operating temp., min.: -60.
  • Continuous operating temp., max.: 130.

Environmental Product Compliance:

  • REACH SVHC: /.

eshop_Filter_00_General:

  • Weidmüller class short: Cross-connector.
  • Weidmüller class target channel: Cross-connector (terminal).

eshop_Filter_01_01_Terminal_Block:

  • Colour: yellow.

Material data:

  • Material: Wemid.
  • Colour: yellow.
  • UL 94 flammability rating: V-0.

System specifications:

  • Version: For the terminals.

Additional technical data:

  • Explosion-tested version: Yes.
  • Installation advice: Direct mounting.
  • Type of fixing: Plugged.

Cross-connector:

  • Number of cross-connected terminals: 2.
  • Rated current, 2-pole: 32 A.
  • Rated current, multi-pole: 32 A.
  • Type: Cross-connector.

Dimensions:

  • Pitch in mm (P): 6.1 mm.

General:

  • Installation advice: Direct mounting.
  • Number of poles: 2.

Rating data:

  • Rated current: 32 A.

Important note:

  • Product information:
  • Due to stability and temperature reasons, it is only possible to break out 60% of contact elements.
  • The usage of cross connectors reduces the rated voltage to 400V.
  • The voltage reduced to 25V if cut cross connection with blank cut edges are used.
