Specifications dimensions and weights:

• Depth: 25.7 mm.
• Depth (inches): 1.012 inch.
• Height: 23.1 mm.
• Height (inches): 0.909 inch.
• Width: 2.8 mm.
• Width (inches): 0.11 inch.
• Net weight: 2.68 g.

Temperatures:

• Storage temperature: -25 °C - 55 °C.
• Continuous operating temp., min.: -60.
• Continuous operating temp., max.: 130.

Environmental Product Compliance:

• REACH SVHC: /.

eshop_Filter_00_General:

• Weidmüller class short: Cross-connector.
• Weidmüller class target channel: Cross-connector (terminal).

eshop_Filter_01_01_Terminal_Block:

• Colour: yellow.
• Material data:
• Material: Wemid.
• Colour: yellow.
• UL 94 flammability rating: V-0.

System specifications:

• Version: For the terminals.

Additional technical data:

• Explosion-tested version: Yes.
• Type of fixing: Plugged.

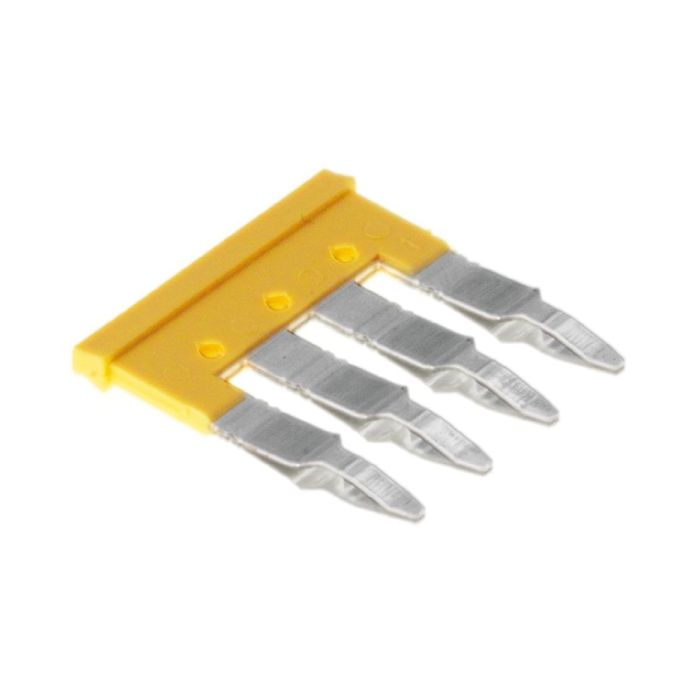

Cross-connector:

• Number of cross-connected terminals: 4.
• Rated current, 2-pole: 32 A.
• Rated current, multi-pole: 32 A.
• Type: Cross-connector.

Dimensions:

• Pitch in mm (P): 6.1 mm.

General:

• Number of poles: 4.

Rating data:

• Rated current: 32 A.

Important note:

• Product information:
• Due to stability and temperature reasons, it is only possible to break out 60% of contact elements.
• The usage of cross connectors reduces the rated voltage to 400V.
• The voltage reduced to 25V if cut cross connection with blank cut edges are used.
