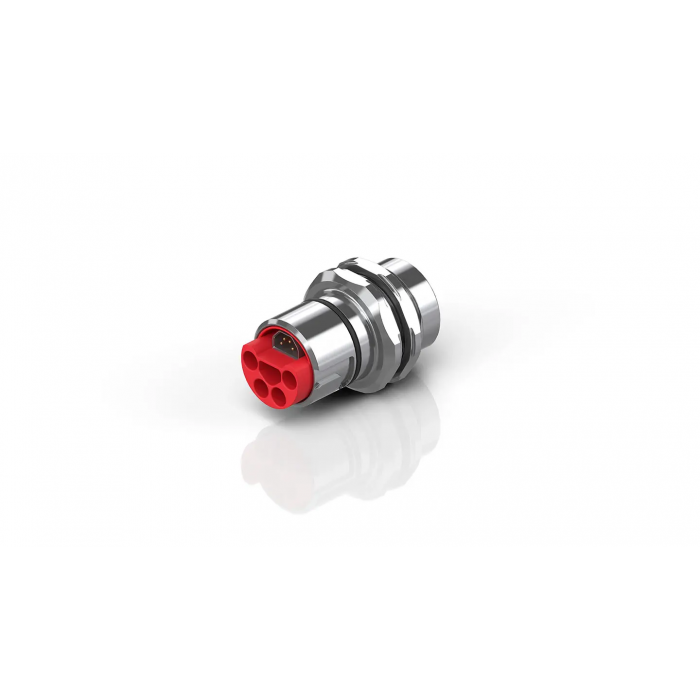

ZS7300-0014 Plug field assembly EtherCAT P
B23, flange, metal, shielded, crimp, straight, short, male+male, 5+4-pin, front assembly, P-coded
Shielding: yes
Installation size: B23
Connector type: flange front assembly
Contact type: male+male
Number of positions (face): pins 4+PE+4
Coding: P-coded
Wire termination: crimp connection
Max. wire cross-section (power): AWG12/4.0 mm²
Max. wire cross-section (Ethernet): AWG22/0.34 mm²
Max. cable outer diameter: 13.0...15.0 mm, 15.0...16.0 mm
| SKU | ZS7300-0014 |
|---|
