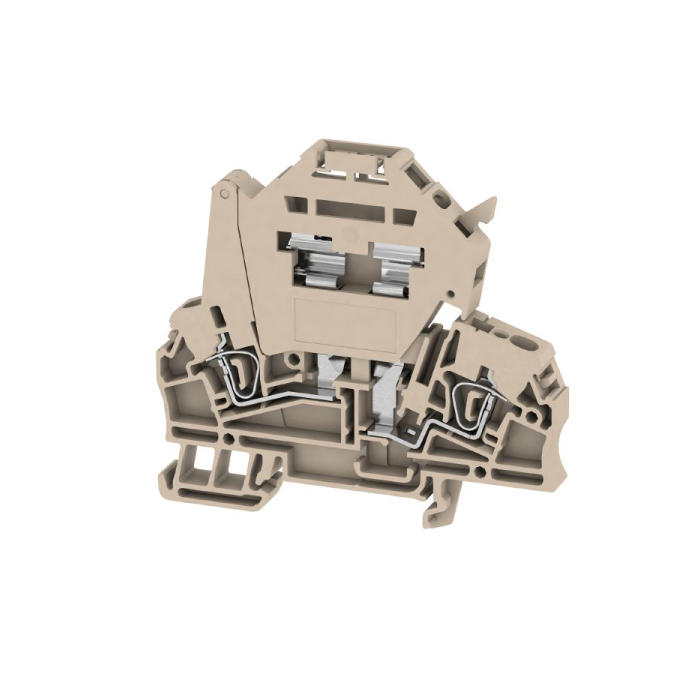

ZSI 2.5
Pricing available on request
ZSI 2.5:
- Using a separate fuse to safeguard the feed-through connection is beneficial in some situations.
- One terminal block bottom piece makes up a fuse terminal block. using a carrier for fuse insertion.
- Different fuses include pivoting screwable closures and flat plug-in fuses to fuse levers and pluggable fuse holders
Material data:
- Material: Wemid
- Colour: dark beige
- UL 94 flammability rating: V-0
Dimensions and weights:
- Depth: 73 mm
- Depth including DIN rail: 74 mm
- Height: 79.5 mm
- Width: 7.9 mm
- Net weight: 19.54 g
Temperatures:
- Storage temperature: -25 °C...55 °C
- Continuous operating temp., min.: -50 °C
- Continuous operating temp., max.: 120 °C
Rating data:
- Rated cross-section: 2.5 mm²
- Rated voltage: 500 V
- Rated voltage to adjoining terminal: 500 V
- Rated DC voltage: 500 V
- Rated current: 6.3 A
- Current at maximum wires: 6.3 A
- Standards: IEC 60947-7-3
- Volume resistance according to IEC 60947-7-x: 1.33 mΩ
- Rated impulse withstand voltage: 6 kV
- Power loss in accordance with IEC 60947-7-x: 0.77 W
- Pollution severity: 3
| SKU | 1616400000 |
|---|---|
| Brand | Weidmuller |
