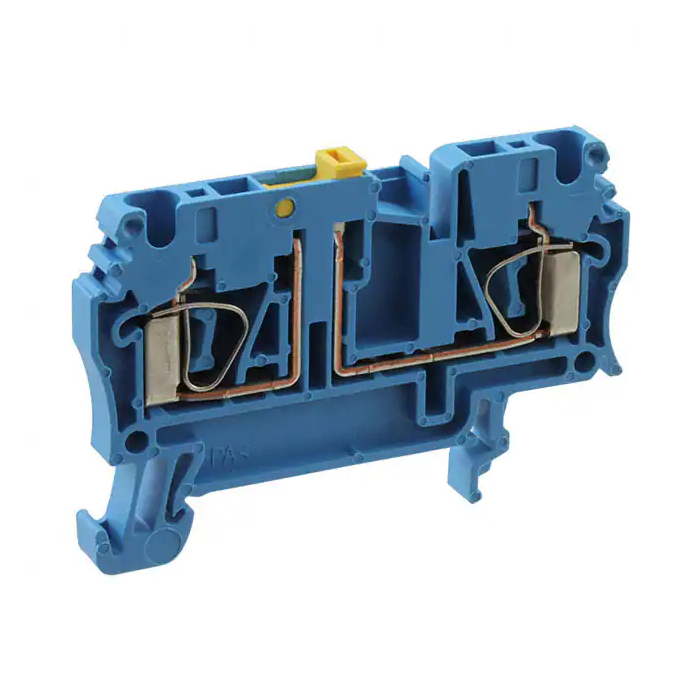

Specifications Weights and dimensions:

• Depth: 38.5 mm.
• Depth (with DIN rail included): 41 mm.
• Height: 59.5 mm.
• Width: 5.1mm.
• Net weight: 8.66 g.

Temperatures:

• Storage temperature range: -25°C to 55°C.
• Continuous operating temperature, minimum: -50°C.
• Continuous operating temperature, maximum: 120 °C.

Material data:

• Material: Wemide.
• Colour: blue.
• UL 94 flammability rating: V-0.

system requirements:

• Version: Tension-clamp connection with spacer, plug-in cross connector, and one end without connector.
• End cover plate required: Yes.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level 2.
• Number of potentials per Tier: 1.
• Cross-connected levels internally: No.
• PE connection: No.
• Rail: TS 35.
• N-function: Yes.
• PE function: No.
• PEN function: No.

Additional technical details:

• Version that has been tested for explosions: No.
• Installation advice: Mount directly.
• Number of comparable terminals: 2.
• Open sides: right.
• Mounting type: snap-on.

CSA Rating Data:

• Certificate number (CSA): 200039-1152892.
• Current size C (CSA): 15 A.
• Current size D (CSA): 5 A.
• Voltage size C (CSA): 600 V.
• Voltage size D (CSA): 600 V.
• Wire cross section maximum (CSA): 12 AWG.
• Wire cross section minimum (CSA): 30 AWG.

Conductors for clamping (extra connection):

• The conductor has a flexible cross-section with a plastic collar DIN 46228/1 and a maximum connection size of 2.5 mm².
• Type of connection, additional connection: Tension-clamp connection.

Conductors for clamping (rated connection):

• Size of blade: 0.6 x 3.5 mm.
• Maximum clamping range: 4 mm².
• Minimum clamping range: 0.05 mm².
• Maximum cross-sectional area, stranded connection: 4 mm².
• Minimum cross-sectional area, stranded: 0.5 mm².
• Connection direction is top.
• Gauge to IEC 60947-1: A3.
• Number of connections: 2.
• Length of strip: 10 mm.
• Connection type: tension-clamp.
• Type 2 connection: tension-clamp.
• Wire connection cross section AWG, maximum: AWG 12.
• Wire connection cross section AWG, minimum: AWG 30.
• Cross section of wire connection, neatly stranded, maximum: 4 mm².
• cross-section of wire connection, finely stranded, minimum: 0.5 mm².
• Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, maximum: 2.5 mm².
• Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, minimum: 0.5 mm².
• Wire connection cross-section, carefully stranded with wire-end ferrules DIN 46228/4, maximum: 2.5 mm².
• Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/4, minimum: 0.5 mm².
• Wire connection cross-section, solid core, maximum: 4 mm².
• Wire connection cross-section, solid core, minimum: 0.5 mm².
• Disconnect terminals.
• Cross-disconnect: without.
• Test socket integral: Yes.
• Slitting: pivoting.

General:

• Installation advice: Mount directly.
• Rail: TS 35.
• Standard: IEC 60947-7-1.
• Wire connection cross section AWG; maximum: AWG 12.
• Wire connection cross section AWG, minimum: AWG 30.

Ratings data:

• Cross-section rating: 2.5 mm².
• Voltage rating: 500 V.
• DC voltage rating: 500 V.
• Current rating: 20 A.
• Current at maximum wires: 20 amps.
• Standard: IEC 60947-7-1.
• According to IEC 60947-7-x, volume resistance is 1.33 mΩ.
• Rated impulse withstand voltage: 6 kV.
• Power loss in accordance with IEC 60947-7-x is 0.77 W.
• Severity of pollution: 3.

UL rating data:

• Certificate No. (UR): E60693.
• Factory wiring maximum conductor size (UR): 12 AWG.
• Size of conductor Factory wiring minimum (UR): 30 AWG.
• Conductor size Field wiring maximum (UR): 12 AWG.
• Conductor size Field wiring minimum (UR): 30 AWG.
• Current C (UR) size: 20 A.
• Voltage size C (UR): 600 V.
