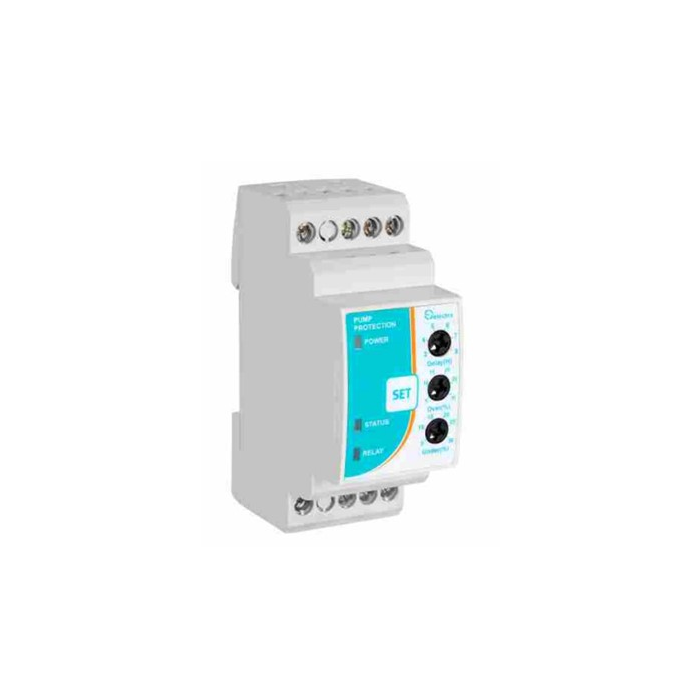

1 PHASE PUMP PROTECTION RELAY 230VAC
SKU: DPP1230A
Out of stock
* Online sales only
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Advanced pump protection relay:
Compact, modular components designed for easy integration into standard panels and/or distribution boards are the Electro D family of control and timing devices.
These easily attach to DIN rail and line up with conventional tiny circuit breakers (MCBs).
To prevent damage to borehole pumps, use an advance pump protection relay.
The device is simple to calibrate and then keeps track of all significant pump attributes.
For availability even in the event of a power outage, all parameters are stored in non-volatile memory.
Restart delays make sure that the borehole is replenished before pumping resumes.
Remaining stock can still be purchased. We can quote on an alternative or replacement product.
View recommended replacementRequest a backorder quote. We will confirm price and lead time before payment.
Buy currently uses Select Automation shop pricing and checkout.
Features:
LED malfunction indication.
Pump diagnosis done automatically.
Pump control via security input.
Button for front face calibration and reset.
A 16A SPST output relay with high current.
LED power supply indicator on.
Mountable on a modular 35.5mm DIN rail.
Input for high current sensing (up to 15A).
Monitors voltage/current both above and below.
Restart delay under current conditions (dry running).
Analog microprocessor with high resolution.
Specifications:
DESCRIPTION: Single phase pump protection relay
CONTACT: 16A SPDT
PHASE: Single phase
RATED CURRENT: 10A
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: / IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
