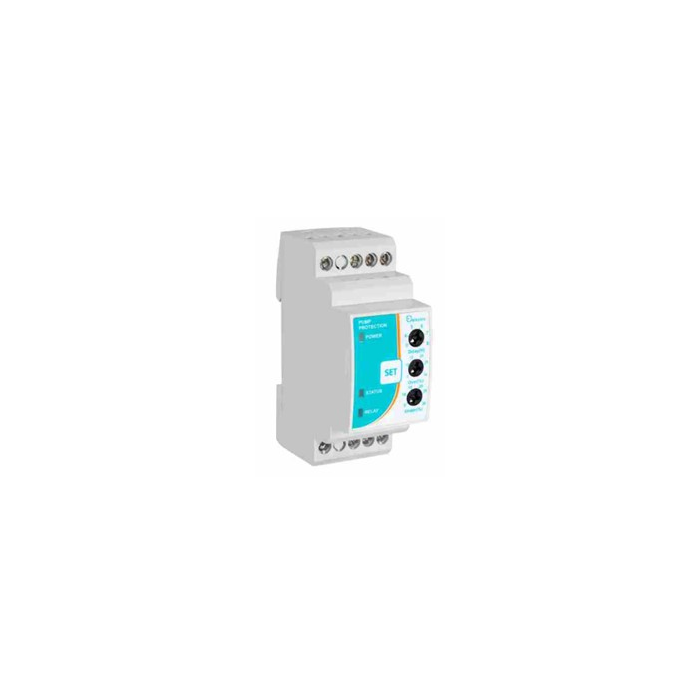

3 PHASE ADJUSTABLE PUMP PROTECTION RELAY 400VAC

ZAR 1,436.49
Out of stock
SKU
DPP4400A

Advanced pump protection relay:

  • Compact, modular components designed for easy integration into standard panels and/or distribution boards are the Electro D family of control and timing devices.
  • These easily attach to DIN rail and line up with conventional tiny circuit breakers (MCBs).
  • To prevent damage to borehole pumps, use an advance pump protection relay.
  • The device is simple to calibrate and then keeps track of all significant pump attributes.
  • For availability even in the event of a power outage, all parameters are stored in non-volatile memory.
  • Restart delays make sure that the borehole is replenished before pumping resumes.

Features:

  • LED malfunction indication.
  • Pump diagnosis done automatically.
  • Pump control via security input.
  • Button for front face calibration and reset.
  • A 16A SPST output relay with high current.
  • LED power supply indicator on.
  • Mountable on a modular 35.5mm DIN rail.
  • Input for high current sensing (up to 15A).
  • monitors voltage/current both above and below.
  • Restart delay under current conditions (dry running).
  • Analog microprocessor with high resolution.

Specifications:

  • DESCRIPTION: Three phase pump protection relay (with adjustment /function selection)
  • CONTACT: 16A SPDT
  • PHASE: Three phase
  • RATED CURRENT: 10A
  • RATED VOLTAGE: 250V
  • MECHANICAL LIFE: 10x106 cycles
  • PROTECTION INDEX IP: IP 20
  • OPERATING TEMPERATURE: -10 to + 50°C
  • STORAGE TEMPERATURE: -50 to + 85°C
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
More Information
Brand Electrodev
